Repair Procedures: Disassembly

WARNING: This page is about a different car, the 2020 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Special grease must be applied to the driveshaft joint. Do not substitute with another type of grease.
The boot band should be replaced with a new one.

Remove the front driveshaft.
(Refer to Driveshaft Assembly - "FRONT DRIVESHAFT ")
Remove the housing circlip (B) from the driveshaft spline (A).

Courtesy of HYUNDAI MOTOR AMERICA

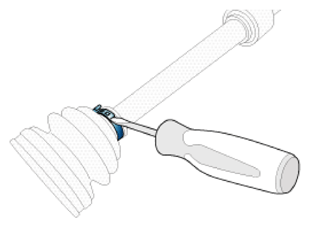

Remove both boot bands from the TJ housing.

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

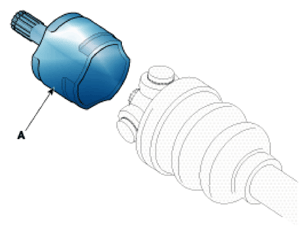

Remove the TJ housing (A).

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:

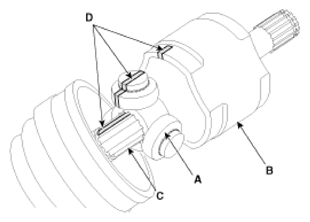

- Make alignment marks on spider roller assembly (A), joint case (B), and shaft spline (C) to aid reassembly.
Courtesy of HYUNDAI MOTOR AMERICA
Remove the retainer ring (A) from the shaft.

Courtesy of HYUNDAI MOTOR AMERICA

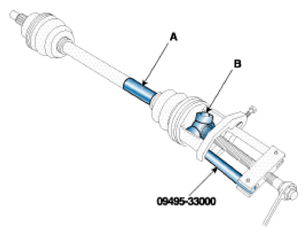

Remove the spider assembly (B) from the driveshaft (A) using the special tool (09495-33000).

Courtesy of HYUNDAI MOTOR AMERICA
Clean the spider assembly.
Remove the TJ boot (A).
NOTE:
- For reusing the boot (A), wrap tape (B) around the driveshaft splines (C) to protect the boot (A).
Courtesy of HYUNDAI MOTOR AMERICA
