Repair Procedures: Removal

WARNING: This page is about a different car, the 2020 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.

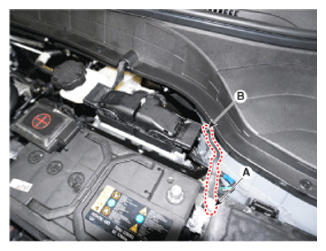

  1. Disconnect the battery negative (-) cable.
  2. Disconnect the battery sensor connector (A).
  3. Remove the battery negative (-) cable after removing the bolts (B).
    G12606772Courtesy of HYUNDAI MOTOR AMERICA
