Repair Procedures: Reassembly

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
  1. Wrap tape around the driveshaft spline (TJ) to prevent damaging the boot.

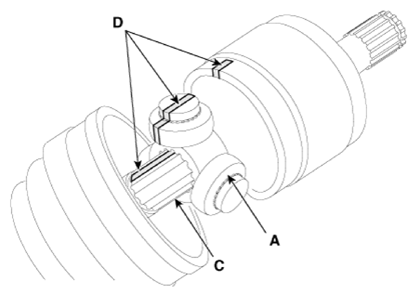

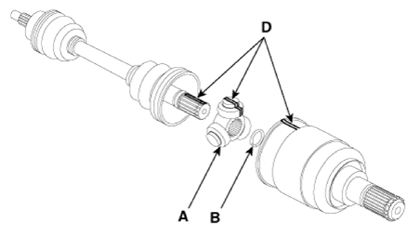

  2. Using the alignment marks (D) made during disassembly as a guide, install the spider assembly (A) and snap ring (B) on the driveshaft splines (C).
    G13481141Courtesy of KIA MOTORS AMERICA, INC.
    G13481142Courtesy of KIA MOTORS AMERICA, INC.
  3. Add specified grease to the joint boot as much as it was wiped away at inspection.
  4. Install both boot bands.

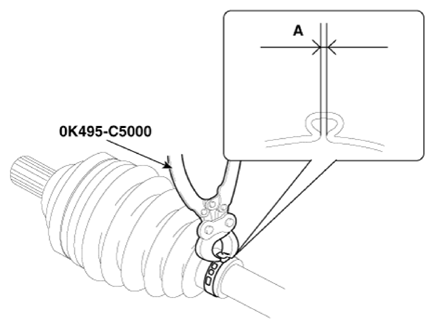

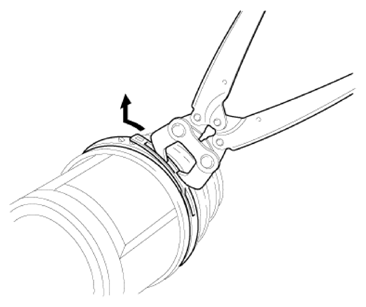

  5. Using the SST (0K495-C5000), secure the TJ boot bands.

    Clearance (A):  2.0 mm (0.0787 in.) or less

    G13481143Courtesy of KIA MOTORS AMERICA, INC.
    G13481144Courtesy of KIA MOTORS AMERICA, INC.
  6. Install the front driveshaft.

    (Refer to Driveshaft Assembly - "FRONT DRIVESHAFT ")
