Repair Procedures: Disassembly

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Special grease must be applied to the driveshaft joint. Do not substitute with another type of grease.
The boot band should be replaced with a new one.

Remove the Front Driveshaft.
(Refer to Driveshaft Assembly - "FRONT DRIVESHAFT ")

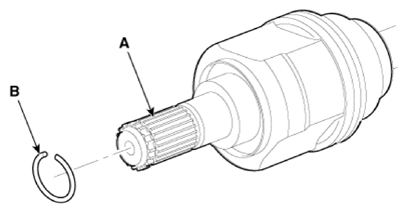

Remove the housing circlip (B) from the driveshaft spline (A).

Courtesy of KIA MOTORS AMERICA, INC.

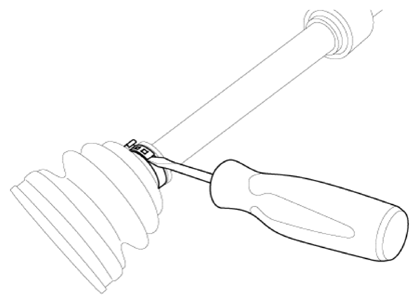

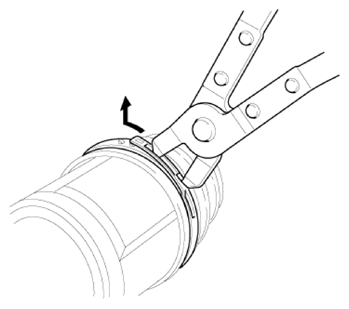

Remove both boot bands from the TJ housing.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

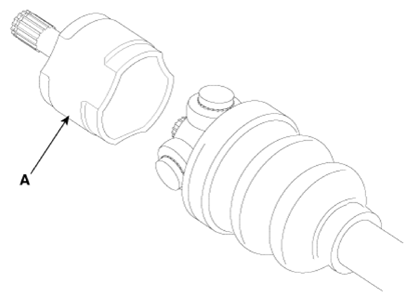

Remove the TJ housing (A).

Courtesy of KIA MOTORS AMERICA, INC.
NOTE:

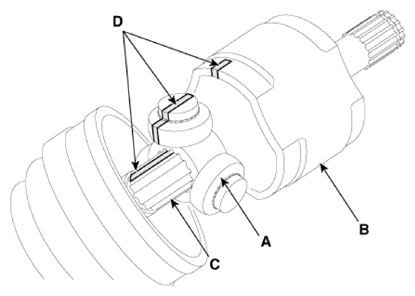

- Make alignment marks (D) on spider roller assembly (A), TJ housing (B), and shaft spline (C) to aid reassembly.
Courtesy of KIA MOTORS AMERICA, INC.

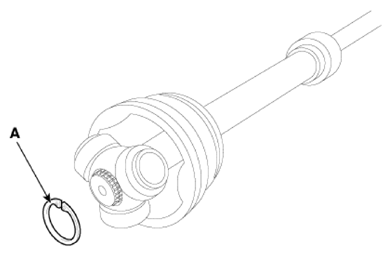

Remove the snap ring (A) from the shaft.

Courtesy of KIA MOTORS AMERICA, INC.

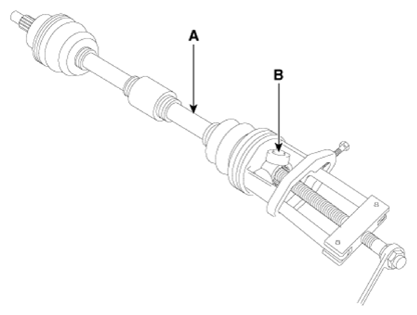

Remove the spider assembly (B) from the driveshaft (A) using the puller.

Courtesy of KIA MOTORS AMERICA, INC.
Clean the spider assembly.
Remove the TJ boot (A).
NOTE:

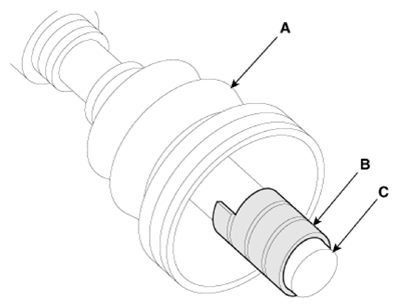

- For reusing the boot (A), wrap tape (B) around the driveshaft splines (C) to protect the boot (A).
Courtesy of KIA MOTORS AMERICA, INC.
