Repair Procedures: Replacement

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

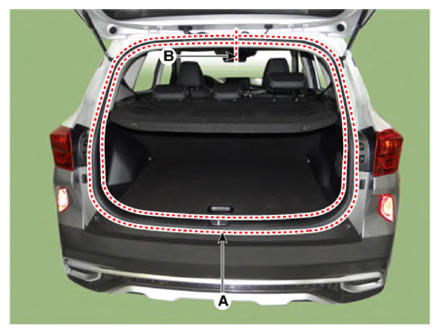

  1. Remove the tailgate weatherstrip (A).
    NOTE: Do not apply sealant to the body.
    G13481879Courtesy of KIA MOTORS AMERICA, INC.
  2. To install, reinstall in reverse order of removal procedure.

    Information

    When installing the tailgate weatherstrip, check the center-marking line (B).
