Components & Components Location: Components

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

Rear Brake Caliper (With EPB)

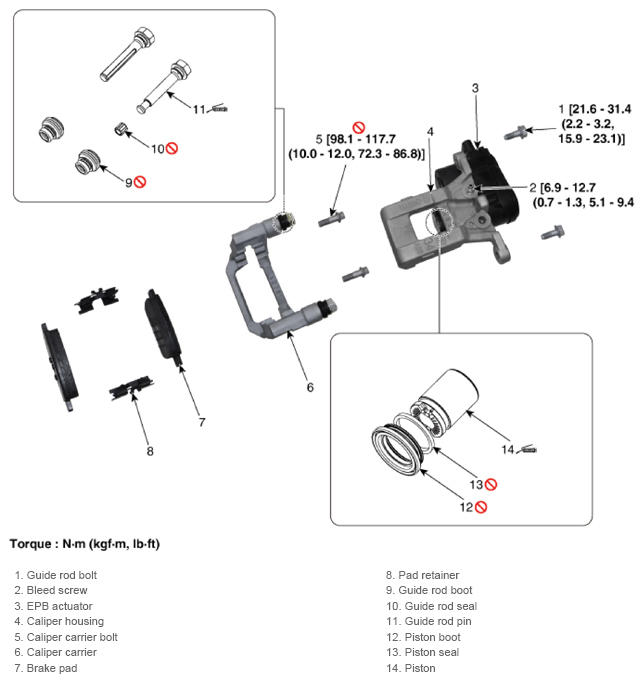

Fig 1: Rear Brake Caliper Components Location With Torque Specification (With EPB)

Courtesy of KIA MOTORS AMERICA, INC.

Rear Brake Caliper (Without EPB)

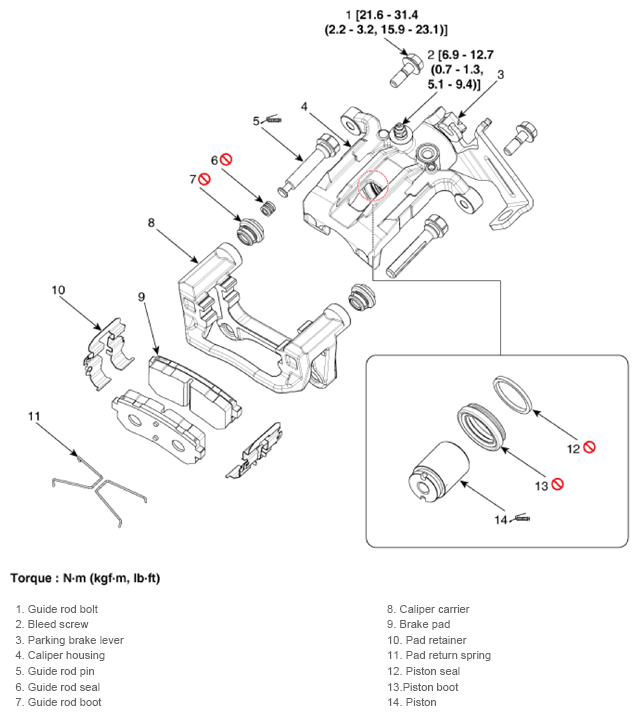

Fig 1: Rear Brake Caliper Components Location With Torque Specification (Without EPB)

Courtesy of KIA MOTORS AMERICA, INC.
