Repair Procedures: Inspection

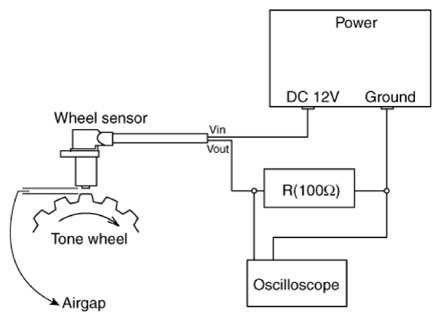

- Measure the output voltage between the terminal of the wheel speed sensor and the body ground.CAUTION: In order to protect the wheel speed sensor, a 100 Ω resistor must be used when measuring output voltage.

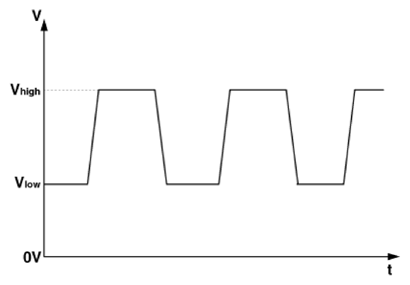

- Compare the change in the output voltage of the wheel speed sensor to the normal change in the output voltage as shown in the illustration below.
- V_low: 0.59 V - 0.84 V
- V_high: 1.18 V - 1.68 V
- Frequency range: 1 - 2, 500 Hz
