Power Window Main Switch

  1. Remove the driver front door trim.

    (Refer to Body - "FRONT DOOR TRIM ")

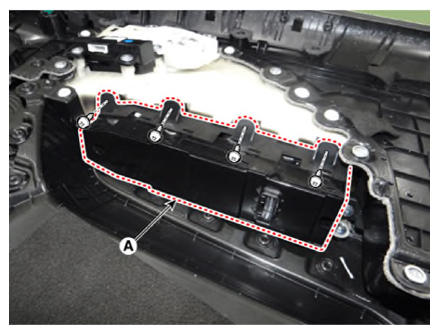

  2. Remove the power window main switch (A) by loosening the screws.
    G13351268Courtesy of KIA MOTORS AMERICA, INC.
