Repair Procedures: Disassembly

WARNING: This page is about a different car, the 2019 Kia Niro EV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front driveshaft.

    (Refer to Driveshaft Assembly - "FRONT DRIVESHAFT ")

  2. Remove the TJ joint assembly.

    (Refer to Driveshaft Assembly - "TJ JOINT ")

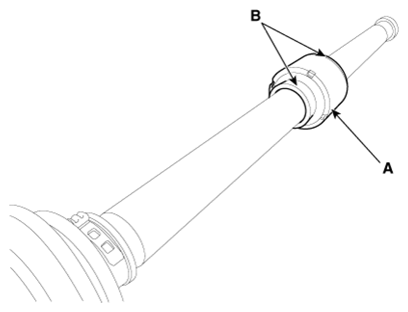

  3. Remove the remove the both side of band (B) of the dynamic damper (A).
    G13203849Courtesy of KIA MOTORS AMERICA, INC.

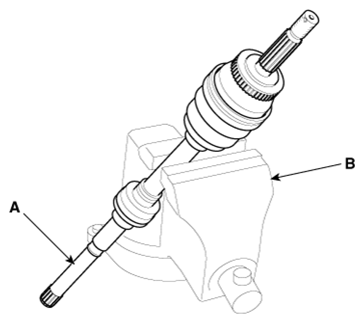

  4. Fix the driveshaft (A) with a vice (B) as illustrated.
    G13203850Courtesy of KIA MOTORS AMERICA, INC.
  5. Apply soap powder on the shaft to prevent being damaged between the shaft spline and the dynamic damper when the dynamic damper is removed.

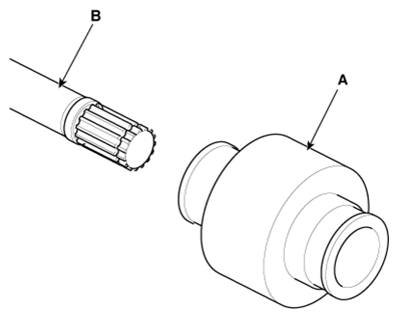

  6. Separate the dynamic damper (A) from the shaft (B) carefully.
    G13203851Courtesy of KIA MOTORS AMERICA, INC.
