Repair Procedures: Replacement

WARNING: This page is about a different car, the 2019 Kia Niro EV. However, it is still accessible from the selected car via links, so may be relevant.

Remove the battery (-) terminal.

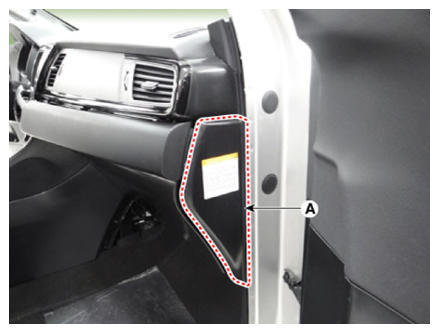

Using a screwdriver or remover, remove the crash pad side cover [RH] (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the crash pad plate [RH] (A) by using a remover.

Courtesy of KIA MOTORS AMERICA, INC.

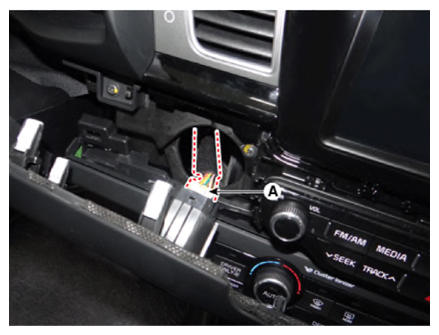

Disconnect the start/stop button connector (A).

Courtesy of KIA MOTORS AMERICA, INC.
Using a screwdriver or remover, remove the center fascia lower panel (A).

Courtesy of KIA MOTORS AMERICA, INC.

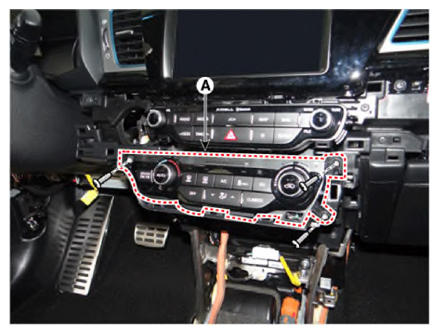

Unfasten the mounting screws and remove the heater and air conditioner control unit (A).

Courtesy of KIA MOTORS AMERICA, INC.

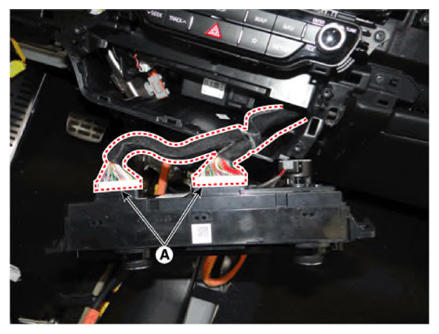

Press the lock pin to remove the heater and air conditioner control unit connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

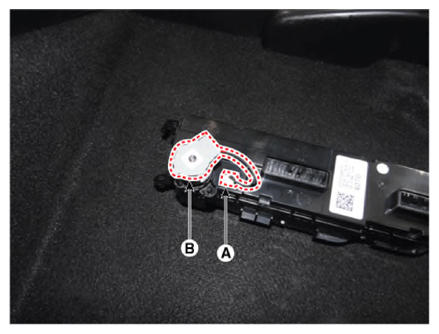

Press the lock pin to separate the connector (A) and remove the in-car sensor (B).

Courtesy of KIA MOTORS AMERICA, INC.
To install, reverse the removal procedure.
NOTE:
- Reassemble the connector correctly.
- Replace any damaged clips.
