Repair Procedures: Replacement

WARNING: This page is about a different car, the 2019 Kia Niro EV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use the retrieval/reproduction/charging device to retrieve the refrigerant.
    WARNING:
    • Use the refrigerant retrieval/charge device exclusively used for the electric compressor to inject the designated refrigerant (R-1234yf) and refrigeration oil (POE). If the refrigeration oil (PAG) for the ordinary car is injected, the compressor may be damaged or a safety-related accident may occur.
  2. Remove the battery (-) terminal.
  3. Remove the front bumper assembly.

    (Refer to Body - "FRONT BUMPER ASSEMBLY ")

  4. Remove the front bumper beam assembly.

    (Refer to Body - "FRONT BUMPER BEAM ASSEMBLY ")

  5. Remove the Charge port.

    (Refer to Battery Control System - "CHARGE PORT ")

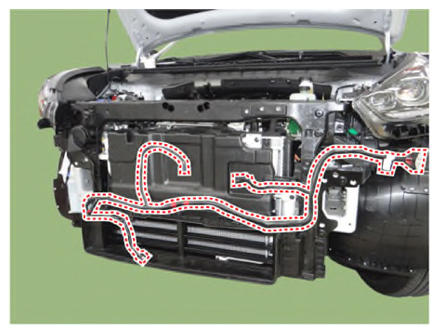

  6. Remove the connector and wiring.
    G13205027Courtesy of KIA MOTORS AMERICA, INC.

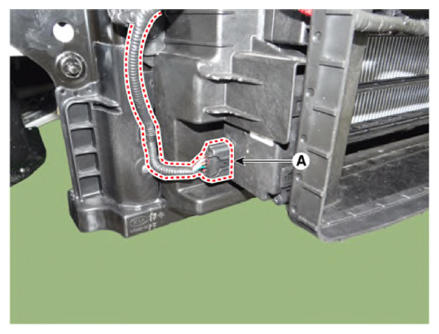

  7. Press the lock pin to separate the active air flpa connector (A).
    G13205028Courtesy of KIA MOTORS AMERICA, INC.

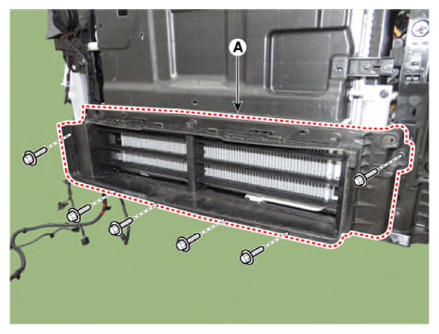

  8. Unfasten the mounting bolt and remove the active air flap assembly (A).
    G13205029Courtesy of KIA MOTORS AMERICA, INC.

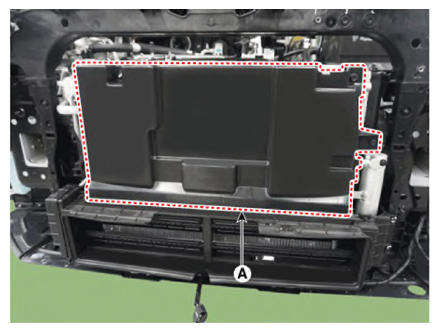

  9. Unfasten the mounting bolts and remove the condenser cover (A).
    G13205030Courtesy of KIA MOTORS AMERICA, INC.

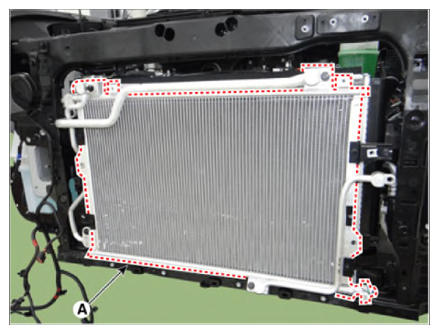

  10. Unfasten the mounting bolts and remove the condenser (A).
    G13205031Courtesy of KIA MOTORS AMERICA, INC.
  11. To install, reverse the removal procedure.
    NOTE:
    • When a new condenser is installed, replenish the compressor oil (POE oil).
    • Replace the O-ring of each connection part with a new one, and apply several drops of compressor oil (refrigeration oil) on the O-ring before connecting the hose or line. Use a specified O-ring to prevent R-1234yf leakage.
    • Be careful not to give an impact on the radiator and the condenser pin when mounting the condenser.
    • Charge the system and test the air conditioning performance.
    WARNING:
    • Use the refrigerant retrieval/charge device exclusively used for the electric compressor to inject the designated refrigerant (R-1234yf) and refrigeration oil (POE). If the refrigeration oil (PAG) for the ordinary car is injected, the compressor may be damaged or a safety-related accident may occur.
