Repair Procedures: Replacement

WARNING: This page is about a different car, the 2019 Kia Niro EV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the glove box housing cover.

    (Refer to Body - "GLOVE BOX HOUSING ")

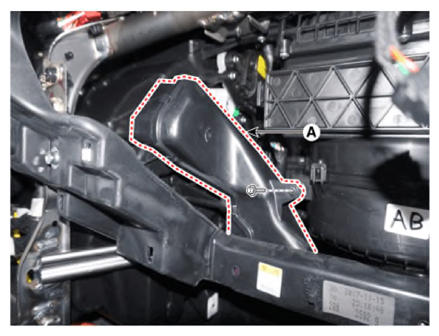

  3. Unfasten the mounting screws and remove the passenger shower duct (A).
    G13205064Courtesy of KIA MOTORS AMERICA, INC.

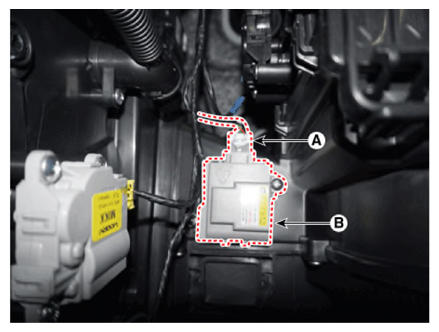

  4. Separate the connector (A) and remove the cluster ionizer (B)
    G13205065Courtesy of KIA MOTORS AMERICA, INC.
  5. To install, reverse the removal procedure.
