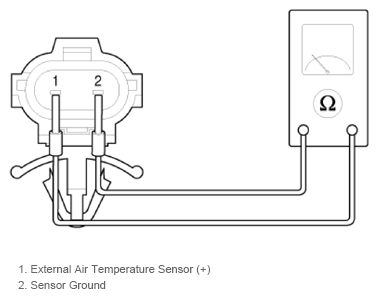

Sensor Resistance
WARNING: This page is about a different car, the 2019 Kia Niro EV. However, it is still accessible from the selected car via links, so may be relevant.
| Temperature (°C) |
Resistance between 1 and 2 (kΩ ± 3%) |
| -30 |
480.41 |
| -20 |
271.21 |
| -10 |
158.18 |
| 0 |
95.10 |
| 10 |
58.80 |
| 20 |
37.32 |
| 30 |
24.26 |
| 40 |
16.13 |
| 50 |
10.95 |
 Courtesy of KIA MOTORS AMERICA, INC.
|
