Repair procedures: Replacement

WARNING: This page is about a different car, the 2019 Kia Niro EV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the battery (-) terminal.
  2. Remove the front bumper assembly.

    (Refer to Body - "FRONT BUMPER ASSEMBLY ")

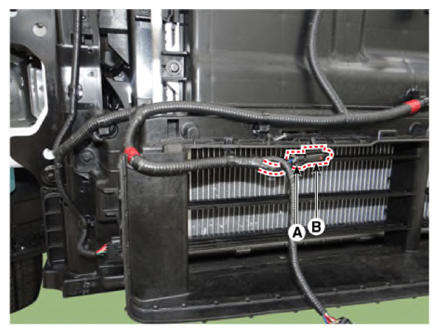

  3. Press the lock pin to separate the connector (A) and remove the external air sensor (B).
    G13205058Courtesy of KIA MOTORS AMERICA, INC.
  4. To install, reverse the removal procedure.
