Repair Procedures: Replacement

WARNING: This page is about a different car, the 2019 Kia Niro EV. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Put on gloves to prevent hand injuries.

NOTE: When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

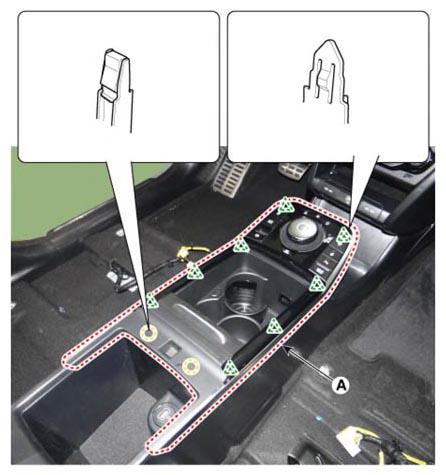

Using a screwdriver or remover, remove the console upper cover (A).

Courtesy of KIA MOTORS AMERICA, INC.

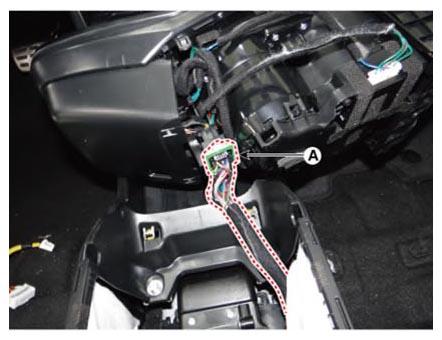

Disconnect the connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

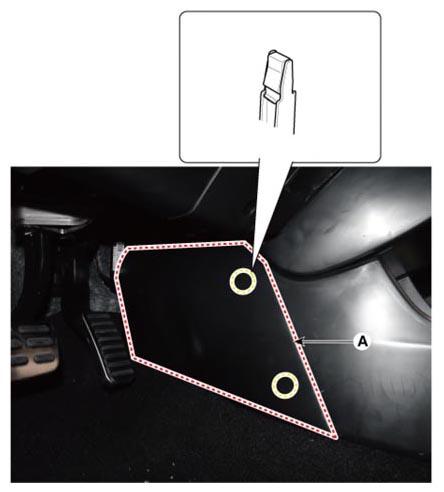

Using a screwdriver or remover, remove the console side cover (A).
[LH]

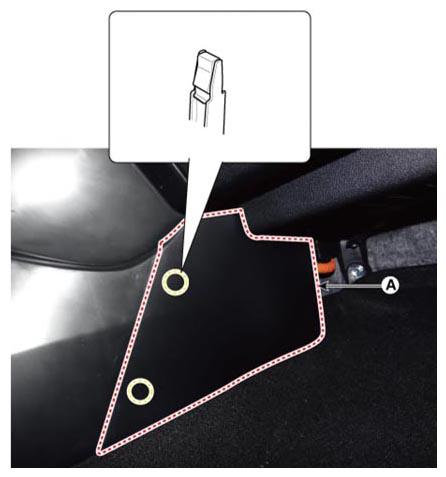

Courtesy of KIA MOTORS AMERICA, INC.

[RH]

Courtesy of KIA MOTORS AMERICA, INC.

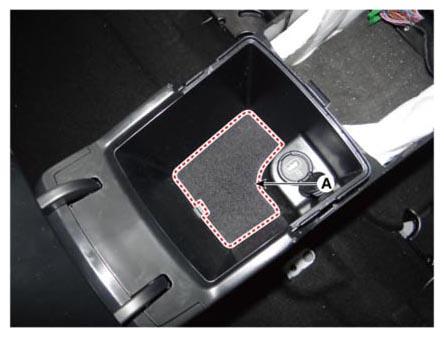

Remove the console tray mat (A).

Courtesy of KIA MOTORS AMERICA, INC.

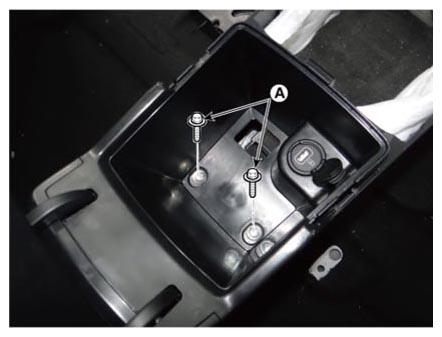

Loosen the console mounting bolts.

Courtesy of KIA MOTORS AMERICA, INC.

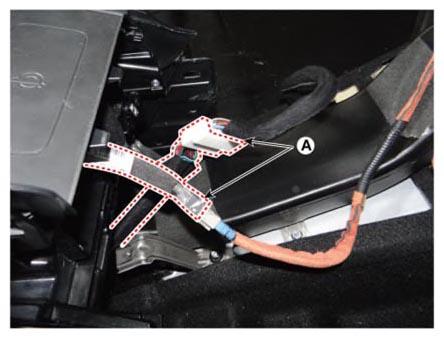

Disconnect the connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

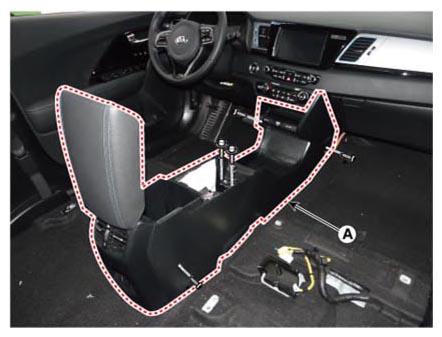

After loosening the mounting screws and bolts, remove the floor console assembly (A).

Courtesy of KIA MOTORS AMERICA, INC.
To install, reverse removal procedure.
Information
- Make sure the connector is plugged in properly.
- Replace any damaged clips (or pin-type retainers).
