[Refrigerant Temperature Sensor #3]

WARNING: This page is about a different car, the 2019 Kia Niro EV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use the retrieval/reproduction/charging device to retrieve the refrigerant.
    WARNING:
    • Use the refrigerant retrieval/charge device exclusively used for the electric compressor to inject the designated refrigerant (R-1234yf) and refrigeration oil (POE). If the refrigeration oil (PAG) for the ordinary car is injected, the compressor may be damaged or a safety-related accident may occur.

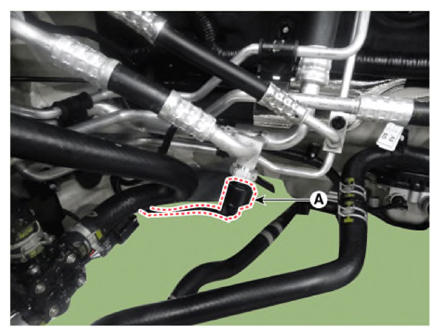

  2. Press the lock pin to separate the refrigerant temperature sensor #3 connector (A).
    G13205180Courtesy of KIA MOTORS AMERICA, INC.

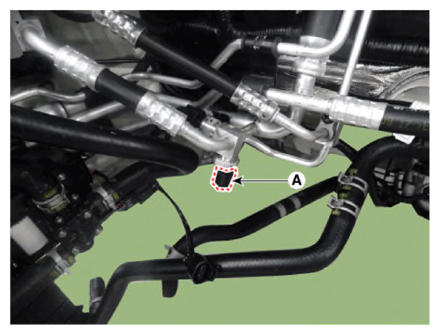

  3. Remove the refrigerant temperature sensor #3 (A).
    G13205181Courtesy of KIA MOTORS AMERICA, INC.
  4. To install, reverse the removal procedure.
