Repair Procedures: Inspection
WARNING: This page is about a different car, the 2019 Kia Niro EV. However, it is still accessible from the selected car via links, so may be relevant.

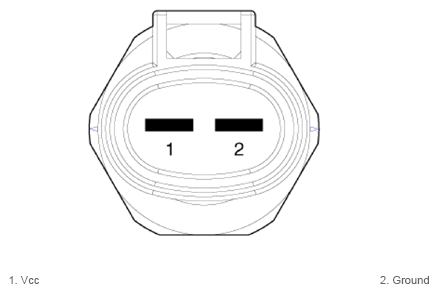

- Use a multi tester to measure the resistance of the terminals 1 and 2.
| Temperature [°C] | Resistance [KΩ] | Margin of Error |
|---|---|---|
| -40 | 225.1 | 3.06 |
| -30 | 129.3 | 2.49 |
| -20 | 76.96 | 1.95 |
| -10 | 47.34 | 1.46 |
| 0 | 30 | 1 |
| 10 | 19.53 | 1.43 |
| 20 | 13.03 | 1.82 |
| 30 | 8.896 | 2.19 |
| 40 | 6.201 | 2.54 |
| 50 | 4.406 | 2.86 |
| 60 | 3.186 | 3.16 |
| 70 | 2.343 | 3.44 |
| 80 | 1.749 | 3.71 |
| 90 | 1.325 | 3.96 |
| 100 | 1.017 | 4.2 |
| 110 | 0.789 | 4.42 |
| 120 | 0.62 | 4.63 |
| 130 | 0.493 | 4.84 |
