Repair Procedures: Replacement

WARNING: This page is about a different car, the 2019 Kia Niro EV. However, it is still accessible from the selected car via links, so may be relevant.

Remove the battery (-) terminal.
Use the retrieval/reproduction/charging device to retrieve the refrigerant.
WARNING:
- Use the refrigerant retrieval/charge device exclusively used for the electric compressor to inject the designated refrigerant (R-1234yf) and refrigeration oil (POE). If the refrigeration oil (PAG) for the ordinary car is injected, the compressor may be damaged or a safety-related accident may occur.

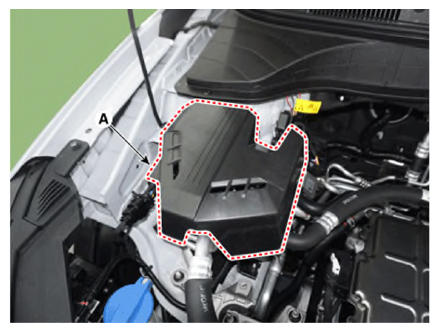

Remove the refrigerant direction control valve cover (A).

Courtesy of KIA MOTORS AMERICA, INC.

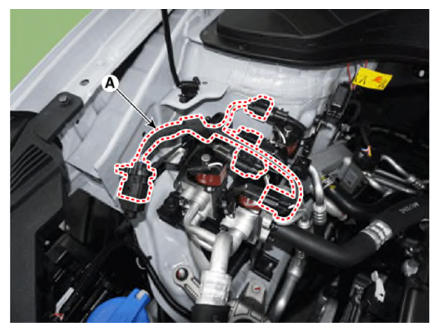

Press the lock pin to separate the various refrigerant direction control valve connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

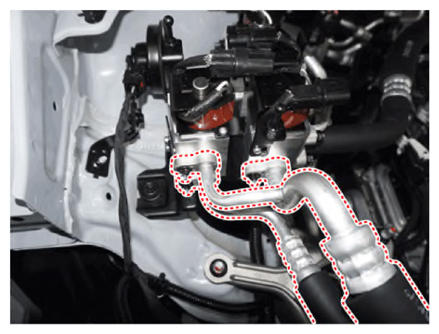

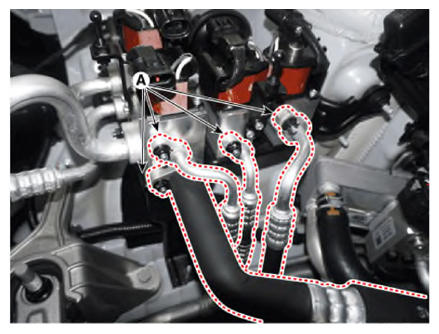

Unfasten the mounting nuts and remove the various refrigerant line (A).
Tightening Torque:

9.8 - 14.7 Nm (1.0 - 1.5 kgf.m, 7.2 - 10.8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

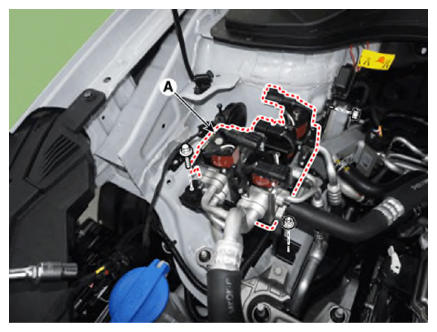

Unfasten the mounting nuts & bolts and remove the refrigerant direction control valve (A).
Tightening Torque:

7.8 - 11.8 Nm (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
To install, reverse the removal procedure.
