Repair Procedures: Replacement

WARNING: This page is about a different car, the 2019 Kia Niro EV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use the retrieval/reproduction/charging device to retrieve the refrigerant.
    WARNING:
    • Use the refrigerant retrieval/charge device exclusively used for the electric compressor to inject the designated refrigerant (R-1234yf) and refrigeration oil (POE). If the refrigeration oil (PAG) for the ordinary car is injected, the compressor may be damaged or a safety-related accident may occur.
  2. Remove the battery.

    (Refer to Vehicle Control System - "AUXILIARY 12V BATTERY ")

  3. Remove the battery tray.

    (Refer to Vehicle Control System - "AUXILIARY 12V BATTERY ")

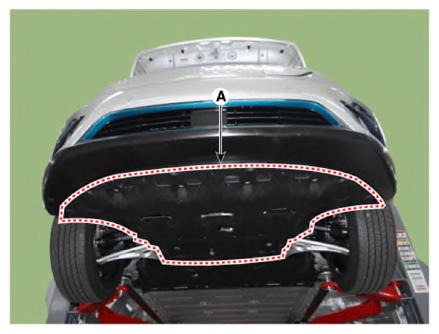

  4. Remove the engine room under cover (A).
    G13205163Courtesy of KIA MOTORS AMERICA, INC.

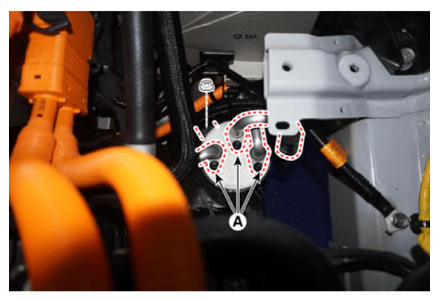

  5. After loosening the mounting nuts, remove the refrigerant line (A).

    Tightening Torque:

    9.8 - 14.7 N.m (1.0 - 1.5 kgf.m, 7.2 - 10.8 lb.ft)

    G13205164Courtesy of KIA MOTORS AMERICA, INC.

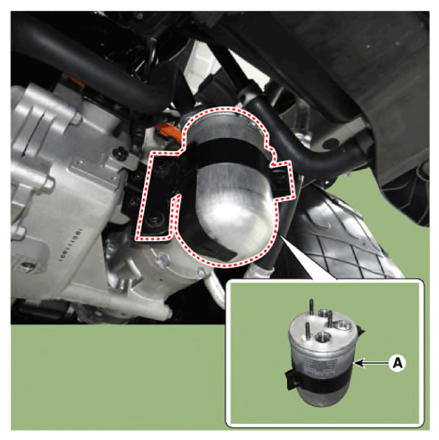

  6. After loosening the mounting bracket nuts and bolts, remove the accumulator (A).

    Tightening Torque:

    9.8 - 14.7 N.m (1.0 - 1.5 kgf.m, 7.2 - 10.8 lb.ft)

    G13205165Courtesy of KIA MOTORS AMERICA, INC.
  7. To install, reverse the removal procedure.
