Install in the reverse order of removal.

NOTE:

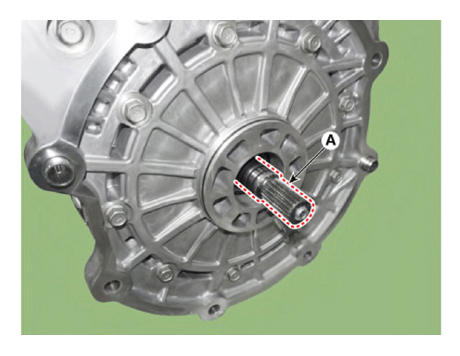

Apply grease on the motor shaft (A) axis before mounting the reduction gear.

Specified Grease: CASMOLY L9508

Courtesy of KIA MOTORS AMERICA, INC.

Watch out for oil seal damage when installing the drive shaft.
Replace the oil seal with a new one when oil leak occurred because of differential oil seal damage.

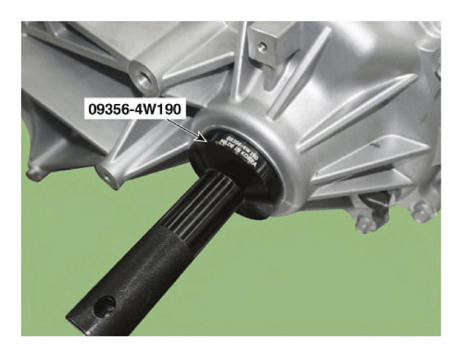

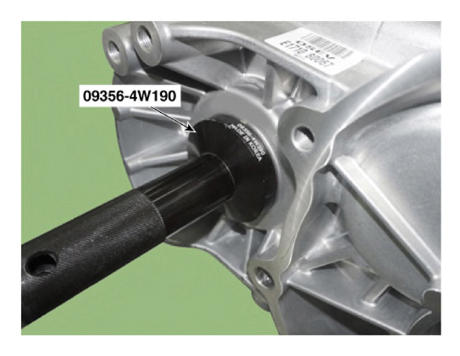

When installing the new oil seal, use the SST (09356-4W190).

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

When re-mounting the reduction gear assembly, refilling the reduction gear with oil after check the oil level.
(Refer to Reduction System - "REDUCTION GEAR OIL ")
