Repair Procedures: Removal

WARNING: This page is about a different car, the 2019 Kia Niro EV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal.
  2. Remove the front bumper assembly.

    (Refer to Body - "FRONT BUMPER ASSEMBLY ")

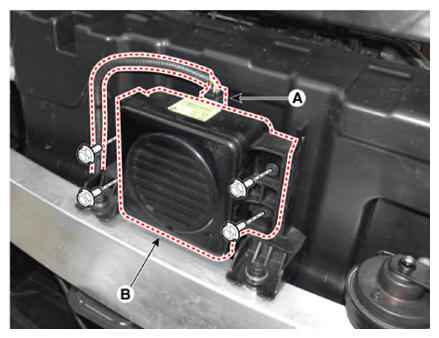

  3. Remove the virtual engine sound control unit and speaker assembly (B) after disconnecting the connector (A) and loosening the mounting bolts.
    G13204905Courtesy of KIA MOTORS AMERICA, INC.
