Monitor DTC Status
WARNING: This page is about a different car, the 2019 Kia Niro EV. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | Inspection Procedure | Reference |
|---|---|---|
|
|

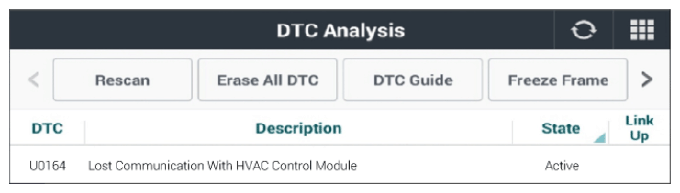

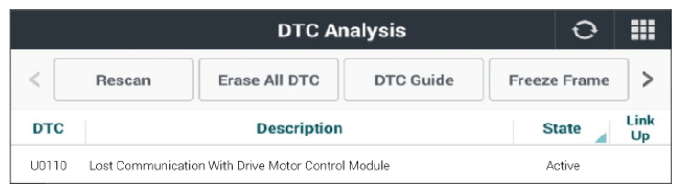

Figure below |
Active Fault
- Go to "WIRING INSPECTION " procedure.
- After disconnecting the CAN communication line, reconnect it and check that the same DTC is set.
- If the same DTC is not set, go to "VERIFICATION OF REPAIR " procedure.
History/Pending Fault
- Fault can be intermittent, caused by poor contact of the sensor's and/or control module's connector or, the module memory was not cleared after repair. Thoroughly check connectors for looseness, poor contact, bending, corrosion, deterioration, or damage. Repair or replace relevant component(s) as necessary and then go to "VERIFICATION OF REPAIR ".
