Repair Procedures: Removal

WARNING: This page is about a different car, the 2019 Kia Niro EV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal.
  2. Remove the clock spring.

    (Refer to Restraint - "DRIVER AIRBAG (DAB) MODULE AND CLOCK SPRING ")

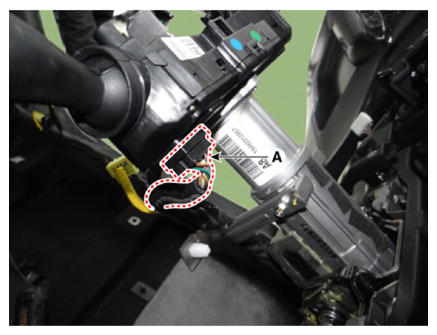

  3. Disconnect the multifunction switch connector (A).
    G13204578Courtesy of KIA MOTORS AMERICA, INC.

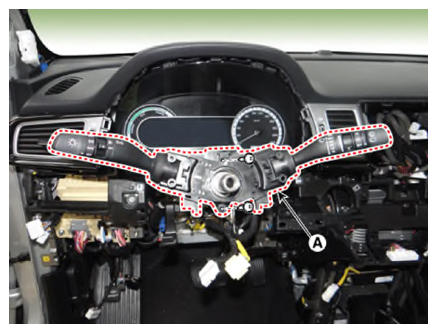

  4. Remove the multifunction switch assembly (A) after loosening the screws.
    G13204579Courtesy of KIA MOTORS AMERICA, INC.
