Multifunction Switch Inspection
WARNING: This page is about a different car, the 2019 Kia Niro EV. However, it is still accessible from the selected car via links, so may be relevant.

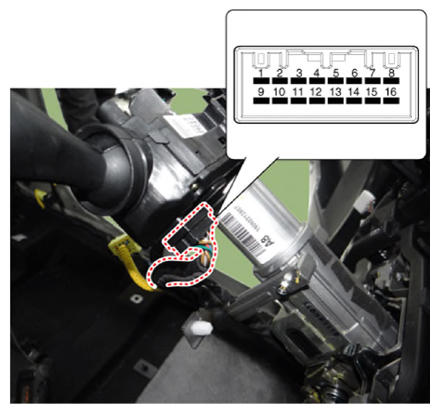

- Check for continuity between the terminals in each switch position as shown below.
[Left Handle Drive]
Switch Switch position Switch terminal Resistance (Ω, ±3.5%) Front wiper switch MIST 1-9 330 OFF ∞ Intermittent (AUTO) 800 LOW 1, 800 HIGH 5, 700 Rear wiper switch OFF 9-16 ∞ LOW 910 HIGH 2, 910 Wiper intermittent volume Volume 1 7-9 330 Volume 2 690 Volume 3 1, 310 Volume 4 2, 610 Volume 5 7, 310 Fog lamp switch OFF 9-10 ∞ Front fog lamp 910 Rear fog lamp 2, 910 Turn signal switch OFF 9-12 ∞ Left 910 Right 2, 910 Dimmer & Passing switch OFF 9-13 ∞ Passing 910 Dimmer 2, 910 Light switch OFF 9-14 ∞ AUTO/DRL 680 Tail lamp 1, 680 Low Beam 5, 580 [Right Handle Drive]
Switch Switch position Switch terminal Resistance (Ω, ±3.5%) Front Wiper switch MIST 3-16 330 OFF ∞ Intermittent (AUTO) 800 LOW 1, 800 HIGH 5, 700 Rear wiper switch OFF 9-16 ∞ LOW 910 HIGH 2, 910 Wiper intermittent volume Volume 1 2-16 330 Volume 2 690 Volume 3 1, 310 Volume 4 2, 610 Volume 5 7, 310 Fog lamp switch OFF 14-16 ∞ Front fog lamp 910 Rear fog lamp 2, 910 Turn signal switch OFF 13-16 ∞ Left 910 Right 2, 910 Dimmer & Passing switch OFF 12-16 ∞ Passing 910 Dimmer 2, 910 Light switch OFF 11-16 ∞ AUTO/DRL 680 Tail lamp 1, 680 Low Beam 5, 580
