Components & Components Location: Component

WARNING: This page is about a different car, the 2019 Kia Niro EV. However, it is still accessible from the selected car via links, so may be relevant.

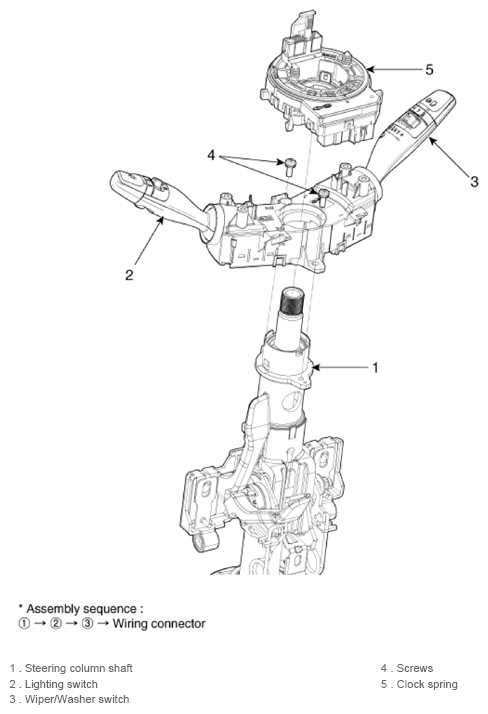

G13204575Courtesy of KIA MOTORS AMERICA, INC.

[LHD]

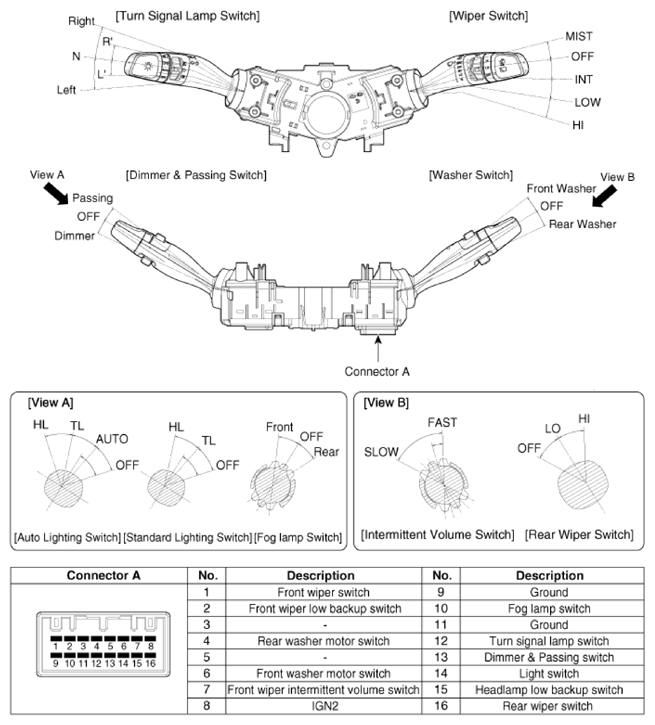

G13204576Courtesy of KIA MOTORS AMERICA, INC.

[RHD]

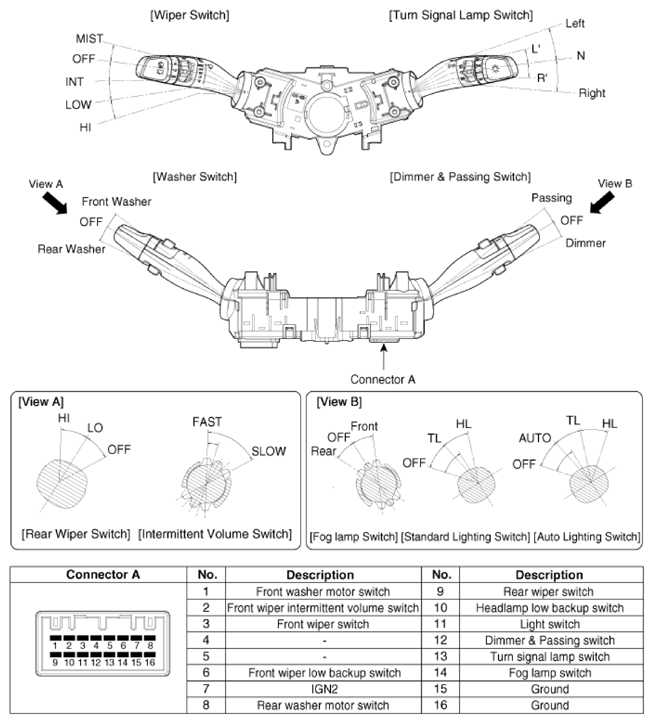

G13204577Courtesy of KIA MOTORS AMERICA, INC.
