Repair Procedures: Replacement

WARNING: This page is about a different car, the 2019 Kia Niro EV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the battery (-) terminal.
  2. Remove the glove box housing cover.

    (Refer to Body - "GLOVE BOX HOUSING ")

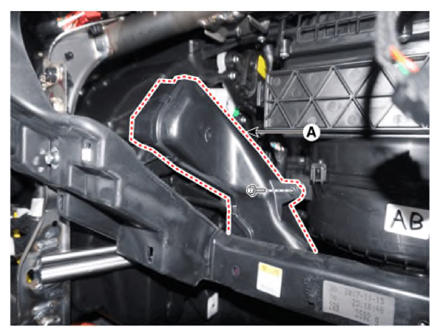

  3. Remove the passenger shower duct (A).
    G13205100Courtesy of KIA MOTORS AMERICA, INC.

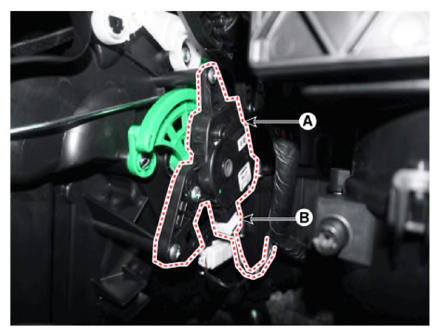

  4. Separate the connector (A), unfasten the locking screw, and then remove the temperature control actuator (B).
    G13205101Courtesy of KIA MOTORS AMERICA, INC.
  5. To install, reverse the removal procedure.
