Repair Procedures: Replacement

WARNING: This page is about a different car, the 2019 Kia Niro EV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the battery (-) terminal.
  2. Remove the main crash pad assembly.

    (Refer to Body - "MAIN CRASH PAD ASSEMBLY ")

  3. Separate the connector (A), unfasten the locking screw, and then remove the mode control actuator (B).

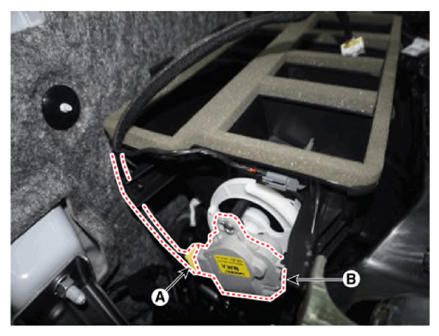

    [Driver side]

    G13205103Courtesy of KIA MOTORS AMERICA, INC.

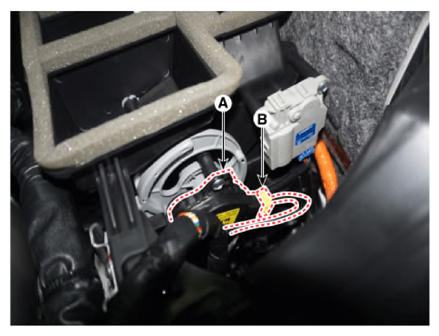

    [Passenger side]

    G13205104Courtesy of KIA MOTORS AMERICA, INC.
  4. To install, reverse the removal procedure.
