Repair Procedures: Replacement

WARNING: This page is about a different car, the 2019 Kia Niro EV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the battery (-) terminal.
  2. Remove the main crash pad assembly.

    (Refer to Body - "MAIN CRASH PAD ASSEMBLY ")

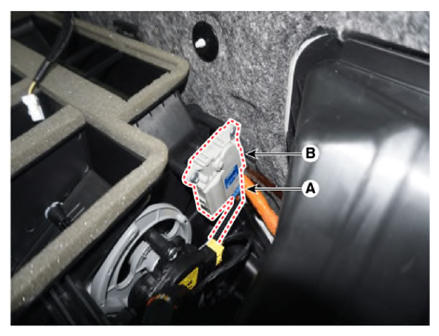

  3. Separate the connector (A), unfasten the locking screw, and then remove the auto defogging actuator (B).
    G13205106Courtesy of KIA MOTORS AMERICA, INC.
  4. To install, reverse the removal procedure.
