Multifunction Switch Inspection
WARNING: This page is about a different car, the 2019 Kia Niro EV. However, it is still accessible from the selected car via links, so may be relevant.

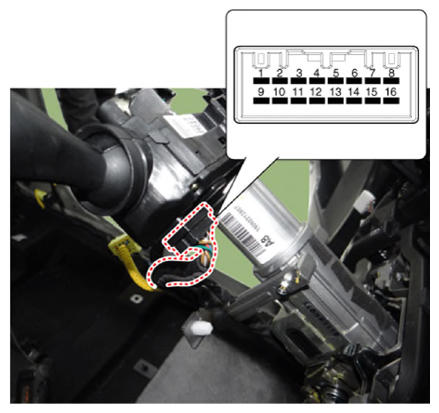

- Check for continuity between the terminals in each switch position as shown below.
[Left Handle Drive]
| Switch | Switch position | Switch terminal | Resistance (Ω, ±3.5%) |
|---|---|---|---|
| Front wiper switch | MIST | 1-9 | 330 |
| OFF | ∞ | ||
| Intermittent (AUTO) | 800 | ||
| LOW | 1800 | ||
| HIGH | 5700 | ||
| Rear wiper switch | OFF | 9-16 | ∞ |
| LOW | 910 | ||
| HIGH | 2910 | ||
| Wiper intermittent volume | Volume 1 | 7-9 | 330 |
| Volume 2 | 690 | ||
| Volume 3 | 1310 | ||
| Volume 4 | 2610 | ||
| Volume 5 | 7310 |
[Right Handle Drive]
| Switch | Switch position | Switch terminal | Resistance (Ω, ±3.5%) |
|---|---|---|---|
| Front Wiper switch | MIST | 3-16 | 330 |
| OFF | ∞ | ||
| Intermittent (AUTO) | 800 | ||
| LOW | 1800 | ||
| HIGH | 5700 | ||
| Rear wiper switch | OFF | 9-16 | ∞ |
| LOW | 910 | ||
| HIGH | 2910 | ||
| Wiper intermittent volume | Volume 1 | 2-16 | 330 |
| Volume 2 | 690 | ||
| Volume 3 | 1310 | ||
| Volume 4 | 2610 | ||
| Volume 5 | 7310 |
