Repair Procedures: Replacement

WARNING: This page is about a different car, the 2019 Kia Niro EV. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Put on gloves to protect your hands.

Information

Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Be careful not to bend or scratch the trim and panels.

[Tailgate upper trim]

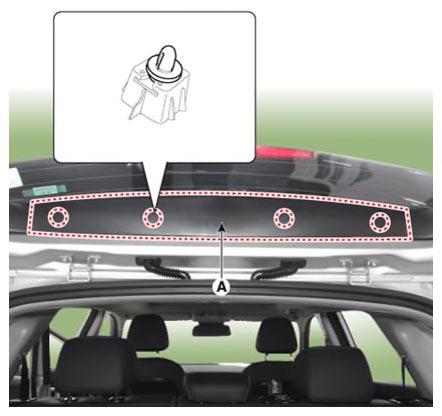

Using a remover, remove the tailgate upper trim (A).

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information

Replace any damaged clips.

[Tailgate side trim]

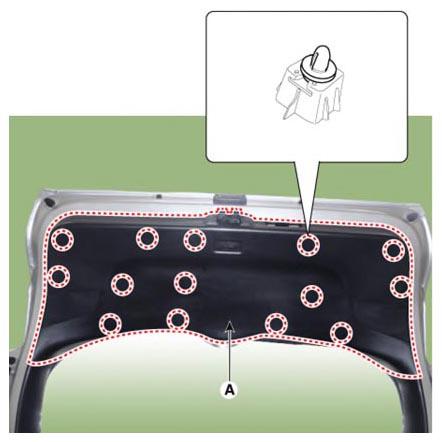

Remove the tailgate trim (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the tailgate upper trim (A).

Courtesy of KIA MOTORS AMERICA, INC.

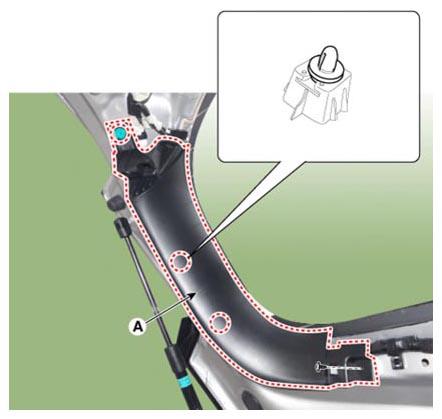

Remove the tailgate side trim (A) after loosening the mounting screw.

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information

Replace any damaged clips.

[Tailgate trim]

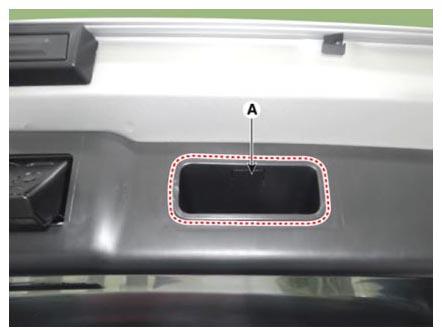

Remove the tailgate pull handle caps (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the tailgate trim (A) after loosening the mounting screws and clips.

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information

Replace any damaged clips.
