Repair Procedures: Replacement

WARNING: This page is about a different car, the 2019 Kia Niro EV. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Put on gloves to protect your hands.

Information

Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Be careful not to bend or scratch the trim and panels.

Remove the front door trim.
(Refer to Front Door - "FRONT DOOR TRIM ")

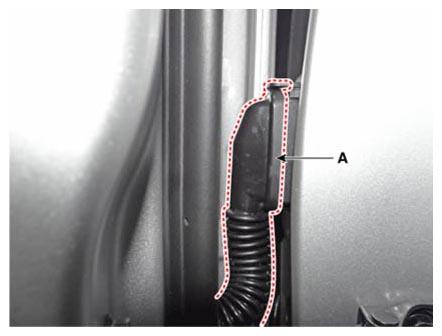

Disconnect the front door main connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

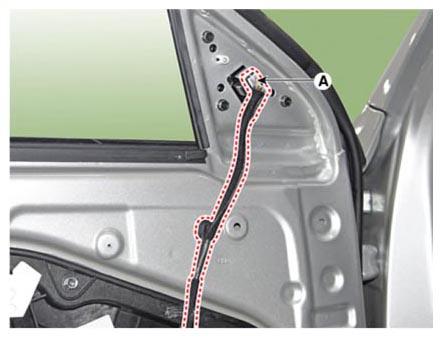

Disconnect the outside rear view mirror connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

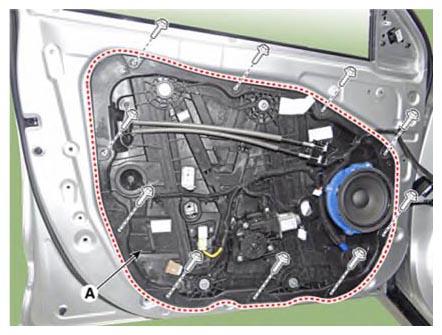

Separate the rear door module (A) after loosening the mounting bolts.
Tightening torque:

8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

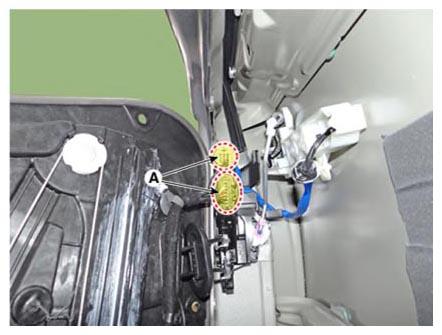

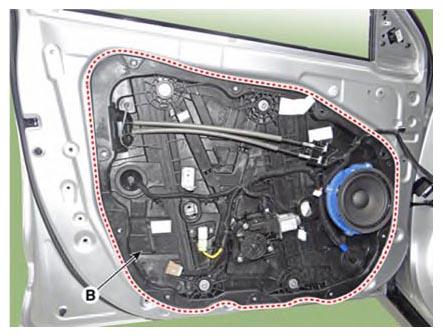

Remove the front door module (A) after disconnecting the front door latch connector (B).

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

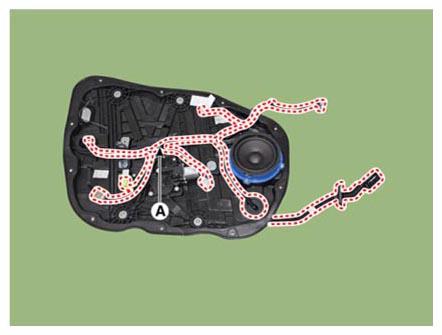

Disconnect the connectors and front door module wiring harness (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the front speaker.
(Refer to Body Electrical System - "SPEAKERS ")
Remove the front power window motor.
(Refer to Body Electrical System - "POWER WINDOW MOTOR ")
Remove the side impact sensor.
(Refer to Restraint - "SIDE IMPACT SENSOR ")
Install in the reverse order of removal.
Information
- Apply enough grease onto the whole parts.
- Make sure that connectors are connected properly and each rod is connected securely.
- Make sure that the door locks/unlocks and opens/closes properly.
