Repair Procedures: Replacement

WARNING: This page is about a different car, the 2019 Kia Niro EV. However, it is still accessible from the selected car via links, so may be relevant.

Loosen the front seat mounting bolts (A).
Tightening torque:

49.0 - 58.8 N.m (5.0 - 6.0 kgf.m, 36.2 - 43.4 lb.ft)

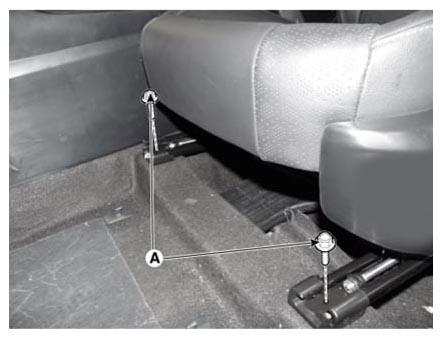

[Front]

Courtesy of KIA MOTORS AMERICA, INC.

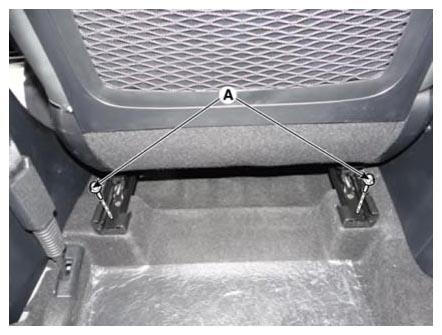

[Rear]

Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the airbag connector (A), seat warmer & power seat switch connector (B), front seat belt buckle connector (C), body sensor (D).

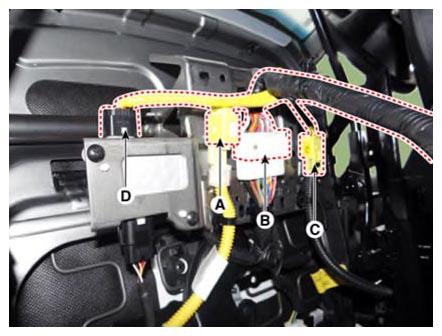

[Driver side]

Courtesy of KIA MOTORS AMERICA, INC.

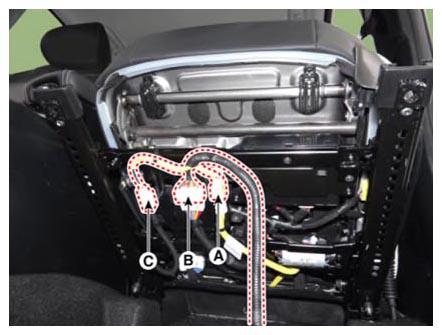

[Passenger side]

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information

SEAT MOUNTING BOLT INSTALLATION PROCEDURE
- Set the seat into the most rearward position. Check that each slide is locked, and then tighten the front mounting bolt temporarily.
- Set the seat into the foremost position. Check that each slide is locked, and then tighten the rear mounting bolt completely.
- Set the seat into the rearmost position. Check that the front mounting bolt is tightened completely.
- Check that the seat operates to and from smoothy and the locking portion locks properly.
