Repair Procedures: Replacement

WARNING: This page is about a different car, the 2019 Kia Niro EV. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Put on gloves to protect your hands.

Information

Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Be careful not to bend or scratch the trim and panels.

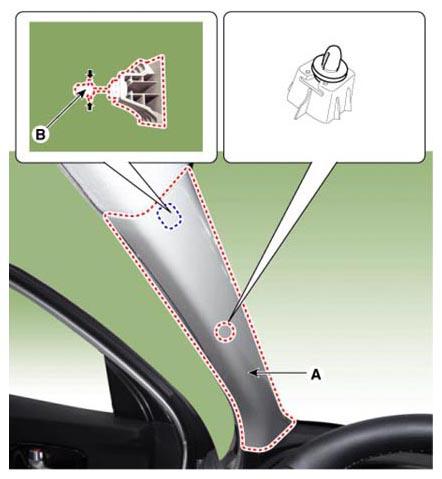

Using a remover, remove the front pillar trim (A).

Courtesy of KIA MOTORS AMERICA, INC.

Install in the reverse order of removal.

Information

Replace any damaged clips.

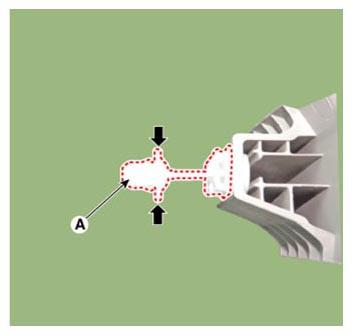

Once the front pillar trim has been removed, replace the clip (A) with a new one.

Courtesy of KIA MOTORS AMERICA, INC.
