Repair Procedures: Camber

  1. Loosen the nut holding the lower arm cam bolt.
  2. Adjust rear camber by turning the rear lower arm cam bolt clockwise or counterclockwise. Camber adjustment should be made by turning the right and left cam bolt by the same amount.

    Camber:  -1.40° ± 0.6°

    One scale turn:  About 0.2°

    Cam bolt (LH):  Clockwise camber (-)

    Cam bolt (RH):  Clockwise camber (+)

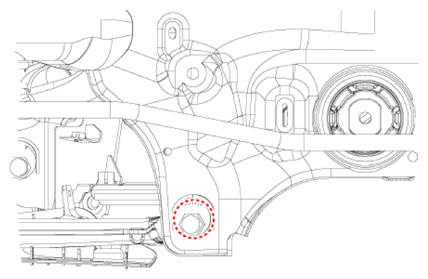

G13144427Courtesy of KIA MOTORS AMERICA, INC.
Item Direction of rotation Toe
Left side Clockwise Decrease (-)
Counter clockwise Increase (+)
Right side Clockwise Increase (-)
Counter clockwise Decrease (+)
