Fork assembly [With AWD]

Remove the front wheel and tire.
(Refer to Tires/Wheels - "WHEEL ")

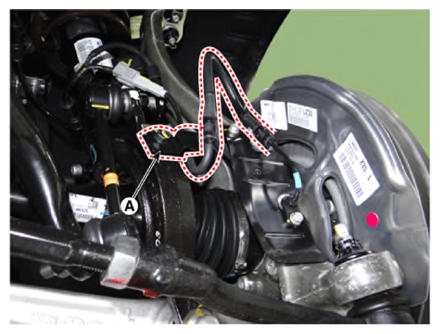

Disconnect the front wheel speed sensor bracket (A).
Tightening torque:

8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

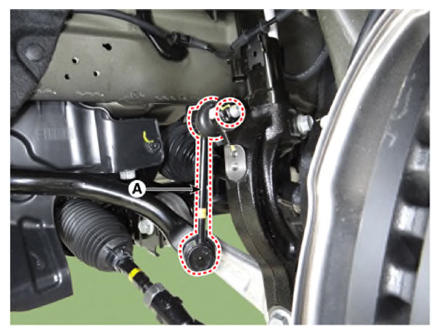

Separate the stabilizer link (A) from the front strut assembly.

Tightening torque:

98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb.ft)

G13144322

Courtesy of KIA MOTORS AMERICA, INC.

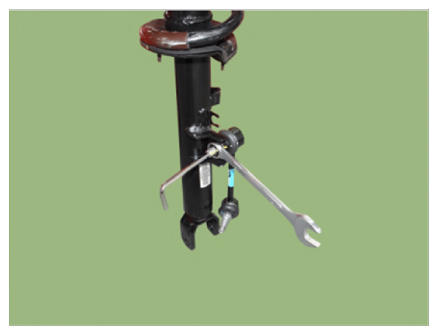

NOTE: Using a hex wrench, fix the end of stabilizer link when loosening the nut.

G13144323

Courtesy of KIA MOTORS AMERICA, INC.

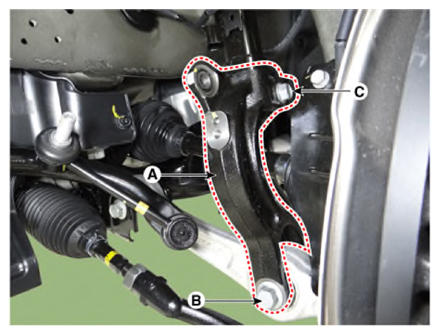

Remove the fork assembly (A) by loosening the bolts.
Tightening torque:

Bolt (B): 156.9 - 176.5 N.m (16.0 - 18.0 kgf.m, 115.7 - 130.2 lb.ft)

Bolt (C): 78.5 - 98.1 N.m (8.0 - 10.0 kgf.m, 57.9 - 72.3 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
