Removal and Installation

Ignition coil (Cylinder #1)

1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
2. Remove the ETC module.

   (Refer to Engine control/Fuel System - "ETC (ELECTRONIC THROTTLE CONTROL) SYSTEM ")

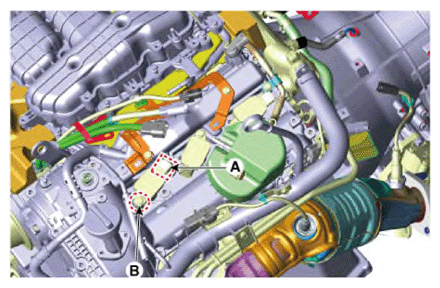

3. Disconnect the ignition coil connector (A).
4. Remove the ignition coil after loosening the mounting bolt (B).

   Tightening torque:

   9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

   Courtesy of KIA MOTORS AMERICA, INC.

5. Install in the reverse order of removal.

Ignition coil (Cylinder #2)

1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.

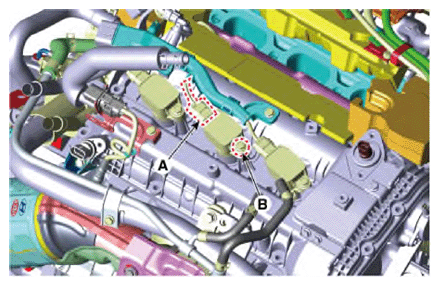

2. Disconnect the ignition coil connector (A).
3. Remove the ignition coil after loosening the mounting bolt (B).

   Tightening torque:

   9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

   Courtesy of KIA MOTORS AMERICA, INC.

4. Install in the reverse order of removal.

Ignition coil (Cylinder #3)

1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
2. Remove the surge tank.

   (Refer to Engine Mechanical System - "SURGE TANK ")

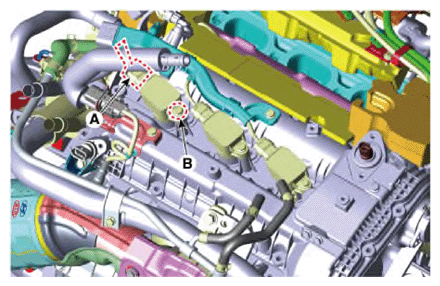

3. Disconnect the ignition coil connector (A).
4. Remove the ignition coil after loosening the mounting bolt (B).

   Tightening torque:

   9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

   Courtesy of KIA MOTORS AMERICA, INC.

5. Install in the reverse order of removal.

Ignition coil (Cylinder #4)

1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
2. Disconnect the ignition coil connector (A).
3. Remove the ignition coil after loosening the mounting bolt (B).

   Tightening torque:

   9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

   Courtesy of KIA MOTORS AMERICA, INC.

4. Install in the reverse order of removal.

Ignition coil (Cylinder #5)

1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
2. Remove the surge tank.

   (Refer to Engine Mechanical System - "SURGE TANK ")

3. Disconnect the ignition coil connector (A).
4. Remove the ignition coil after loosening the mounting bolt (B).

   Tightening torque:

   9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

   Courtesy of KIA MOTORS AMERICA, INC.

5. Install in the reverse order of removal.

Ignition coil (Cylinder #6)

1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
2. Disconnect the ignition coil connector (A).
3. Remove the ignition coil after loosening the mounting bolt (B).

   Tightening torque:

   9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

   Courtesy of KIA MOTORS AMERICA, INC.

4. Install in the reverse order of removal.
