Removal And Installation

  1. Remove the fuel pump.

    (Refer to Fuel Delivery System - "FUEL PUMP ")

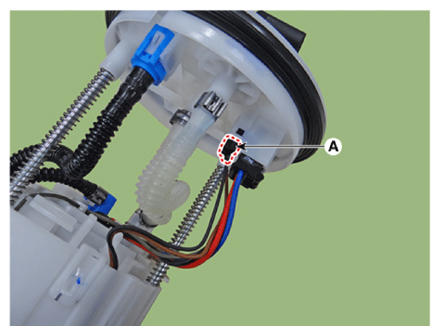

  2. Remove the fuel sender connector (A).
    G13143570Courtesy of KIA MOTORS AMERICA, INC.

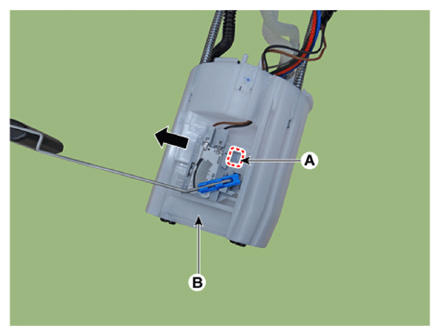

  3. Lift the fixing hook (A) by using a common driver, and then remove the fuel sender (B).
    G13143571Courtesy of KIA MOTORS AMERICA, INC.
  4. Install in the reverse order of removal.
