Removal And Installation

  1. Release the residual pressure in fuel line.

    (Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")

  2. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  3. Remove the rear seat cushion assembly.

    (Refer to Body - "REAR SEAT ASSEMBLY ")

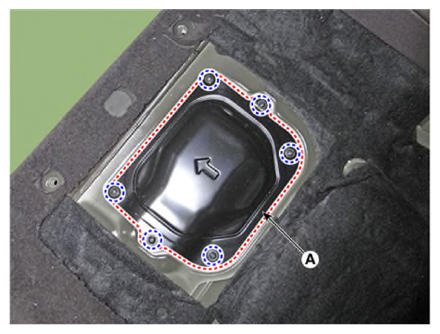

  4. Remove the fuel pump service cover (A) after loosening the screws.
    G13143582Courtesy of KIA MOTORS AMERICA, INC.

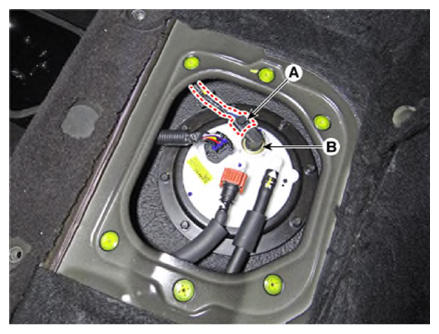

  5. Disconnect the fuel pressure sensor connector (A).
  6. Remove the fuel pressure sensor fixing pin.
  7. Remove the fuel pressure sensor (B) from the fuel pump.
    G13143583Courtesy of KIA MOTORS AMERICA, INC.
  8. Install in the reverse order of removal.
