Repair Procedures: Replacement: [AWD]

  1. Remove the upper oil pan.

    (Refer to Lubrication System - "OIL PAN ")

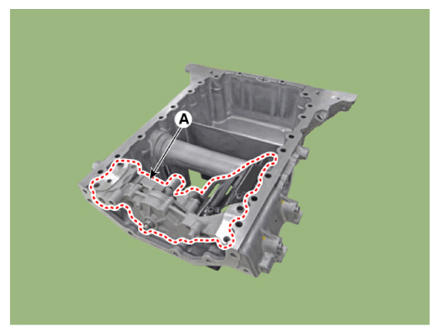

  2. Remove the oil pump (A) from the upper oil pan.
    G13142985Courtesy of KIA MOTORS AMERICA, INC.
  3. Install in the reverse order of removal.
