Repair Procedures: Replacement: [2WD]

Remove the upper oil pan.
(Refer to Lubrication System - "OIL PAN ")

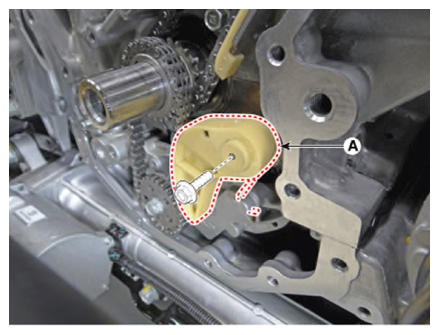

Remove the oil pump tensioner (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

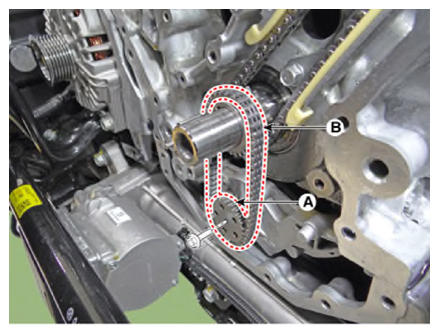

Remove the oil pump chain sprocket (A) and oil pump chain (B).
Tightening torque:

19.6 - 24.5 N.m (2.0 - 2.5 kgf.m, 14.5 - 18.1 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

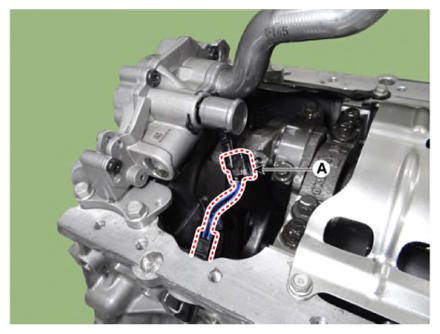

Disconnect the oil pump connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

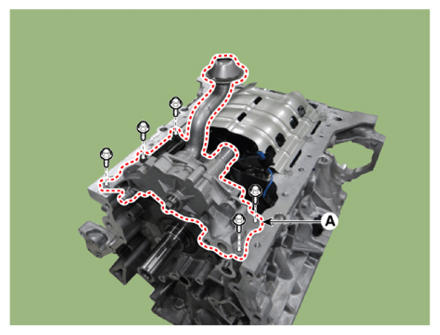

Remove the oil pump (A).
Tightening torque:

20.6 - 22.6 N.m (2.1 - 2.3 kgf.m, 15.2 - 16.6 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
