Repair Procedures: Replacement

CAUTION: Put on gloves to prevent hand injuries.

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
Take care not to bend or scratch the trim and panels.

Disconnect the negative (-) battery terminal.
Remove the front pillar trim.
(Refer to Interior Trim - "FRONT PILLAR TRIM ")
Remove the cowl side trim.
(Refer to Interior Trim - "COWL SIDE TRIM ")
Remove the floor console assembly.
(Refer to Floor Console - "FLOOR CONSOLE ASSEMBLY ")

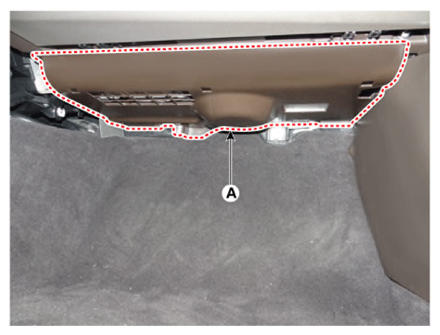

Using a screwdriver or remover, remove the crash pad under cover [RH] (A).

Courtesy of KIA MOTORS AMERICA, INC.

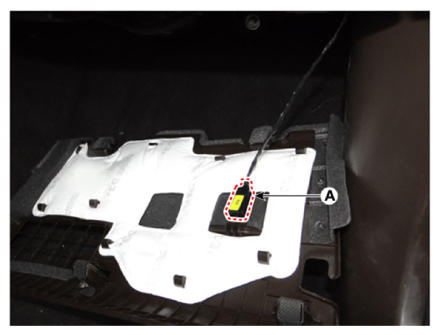

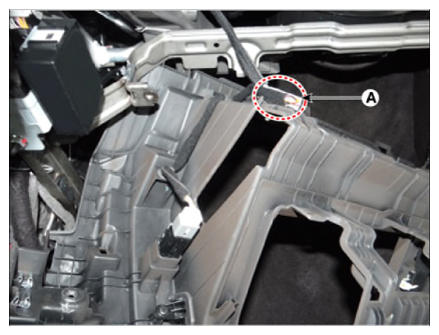

Disconnect the under lamp connector (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the glove box.
(Refer to Crash Pad - "GLOVE BOX ")
Remove the steering wheel.
(Refer to Steering System - "STEERING WHEEL ")
Remove the steering column shroud lower panel.
(Refer to Crash Pad - "STEERING COLUMN SHROUD PANEL ")
Remove the head up display unit.
(Refer to Body Electrical System - "HEAD UP DISPLAY SYSTEM ")

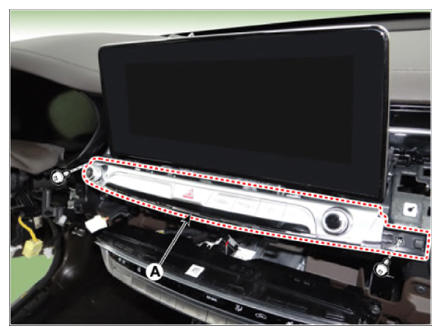

After loosening the mounting screws, remove the AVN keyboard (A).

Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the connectors (A).

Courtesy of KIA MOTORS AMERICA, INC.

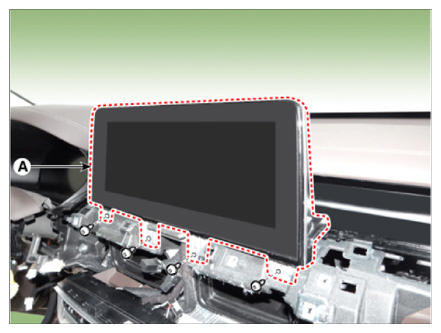

After loosening the mounting screws, remove the AVN monitor (A).

Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the connectors (A).

Courtesy of KIA MOTORS AMERICA, INC.

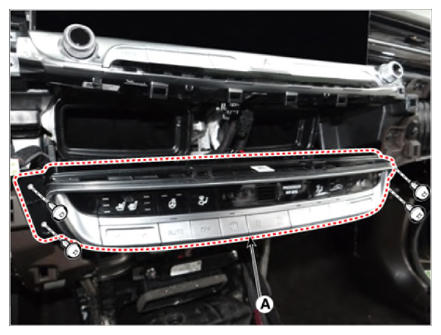

After loosening the mounting screws, remove the A/C & heater controller unit (A).

Courtesy of KIA MOTORS AMERICA, INC.

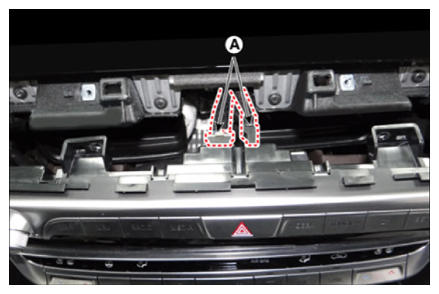

Disconnect the connectors (A).

Courtesy of KIA MOTORS AMERICA, INC.

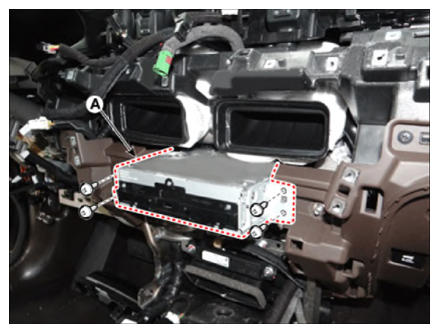

After loosening the mounting screws, remove the AVN head unit (A).

Courtesy of KIA MOTORS AMERICA, INC.

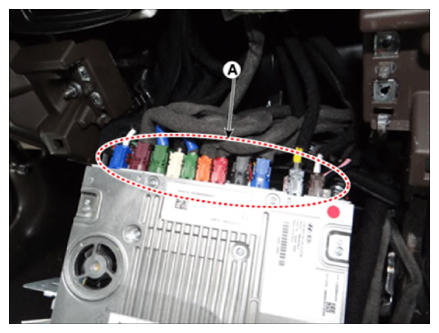

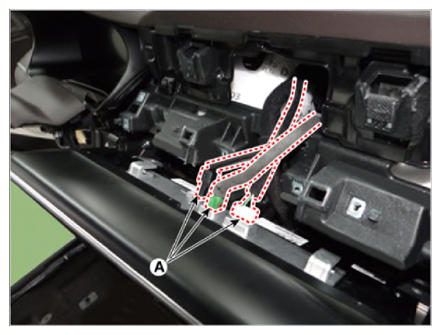

Disconnect the connectors (A).

Courtesy of KIA MOTORS AMERICA, INC.

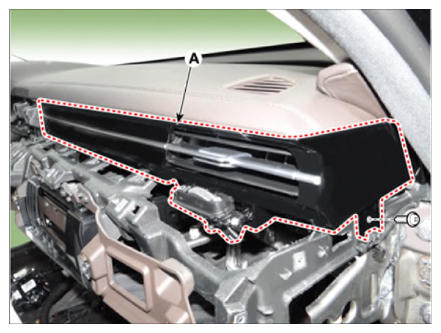

After loosening the mounting screws, remove the crash pad upper garnish [RH] (A).

Courtesy of KIA MOTORS AMERICA, INC.

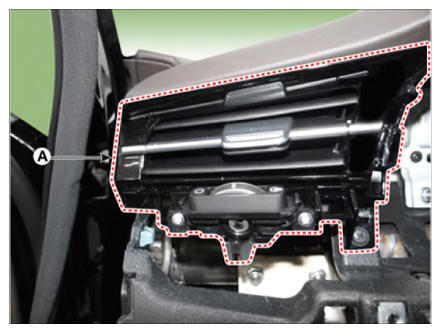

After loosening the mounting screws, remove the crash pad upper garnish [LH] (A).

Courtesy of KIA MOTORS AMERICA, INC.

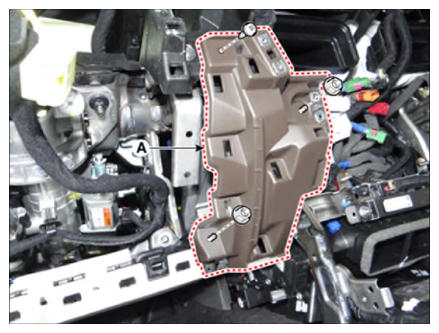

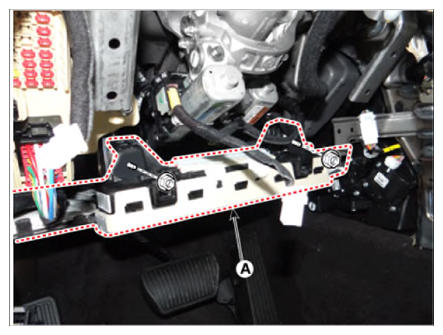

After loosening the mounting nuts and screw, remove the lower crash pad panel [LH] (A).

Courtesy of KIA MOTORS AMERICA, INC.
After loosening the mounting nuts, remove the knee airbag module (A).

Courtesy of KIA MOTORS AMERICA, INC.

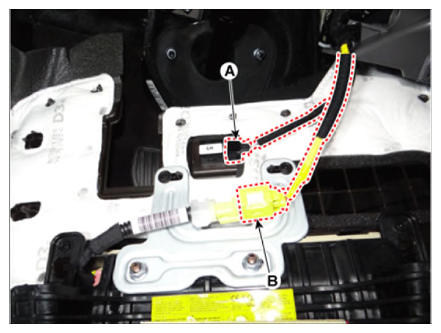

Disconnect the knee airbag module connector (B) and light connectors (A).

Courtesy of KIA MOTORS AMERICA, INC.
After loosening the mounting screws, remove the DVD player (A).

Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the connectors (A).

Courtesy of KIA MOTORS AMERICA, INC.

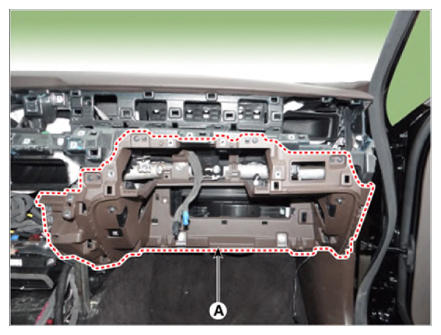

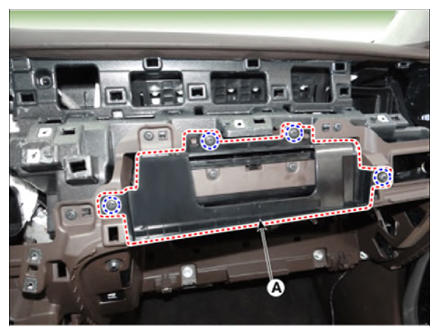

After loosening the mounting bolt, nuts and screw, remove the lower crash pad panel [RH] (A).

Courtesy of KIA MOTORS AMERICA, INC.

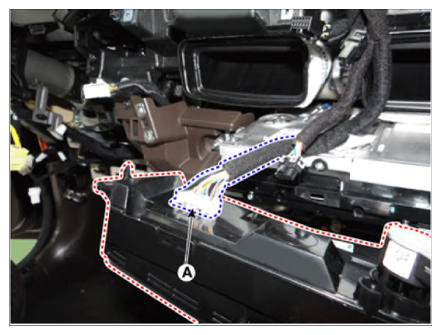

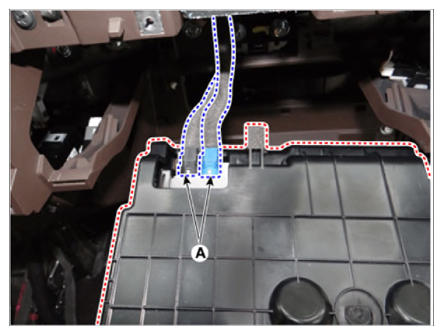

Disconnect the connectors (A).

Courtesy of KIA MOTORS AMERICA, INC.

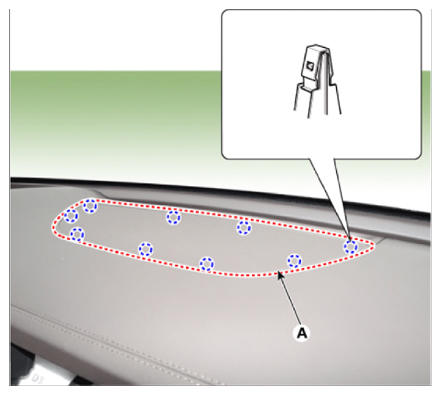

Using a screwdriver or remover, remove the center speaker grill (A).

Courtesy of KIA MOTORS AMERICA, INC.

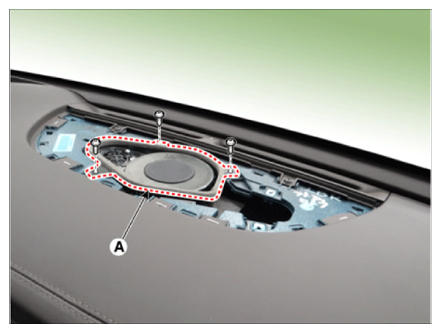

After loosening the mounting screws, remove the center speaker (A).

Courtesy of KIA MOTORS AMERICA, INC.

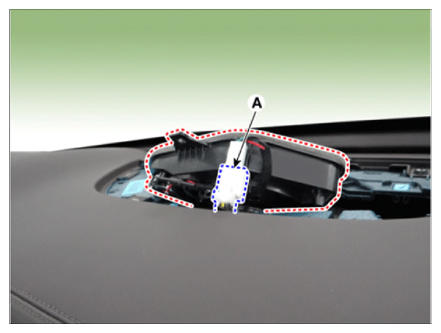

Disconnect the connectors (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the security indicator (A).

Courtesy of KIA MOTORS AMERICA, INC.

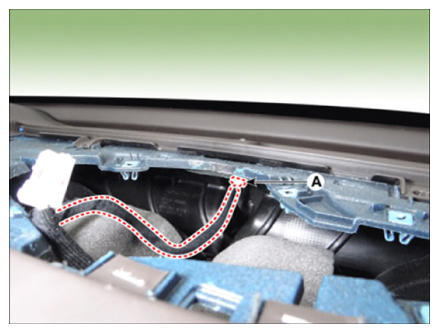

Disconnect the security lamp connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

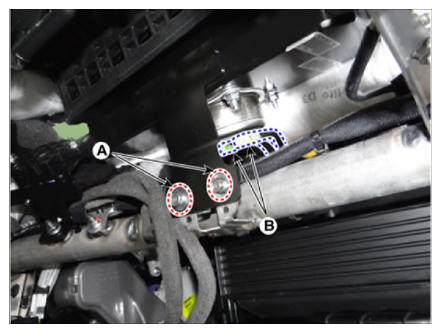

After loosening the mounting bolts (A) and releasing the airbag connector locking buttons, remove the active vent connectors (B).

Courtesy of KIA MOTORS AMERICA, INC.

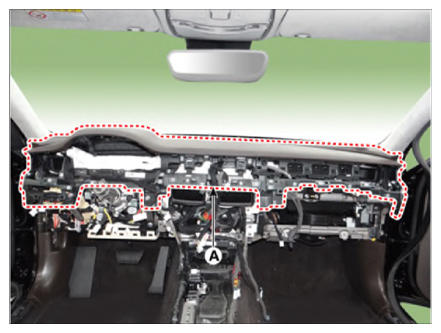

After loosening the mounting bolts and nuts, remove the main crash pad assembly (A).

Courtesy of KIA MOTORS AMERICA, INC.
To install, reverse the removal procedure.
Information
- Make sure the crash pad fits onto the guide pins correctly.
- Before tightening the bolts, make sure the crash pad wire harnesses are not pinched.
- Make sure the connectors are plugged in properly, and the antenna lead is connected properly.
- Enter the anti-theft code for the radio, then enter the customer's radio station presets.
- Make sure that each of the assembly components operates properly.
- Replace any damaged clips (or pin-type retainers).
