Repair Procedures: Removal

  1. Remove the floor console assembly.

    (Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

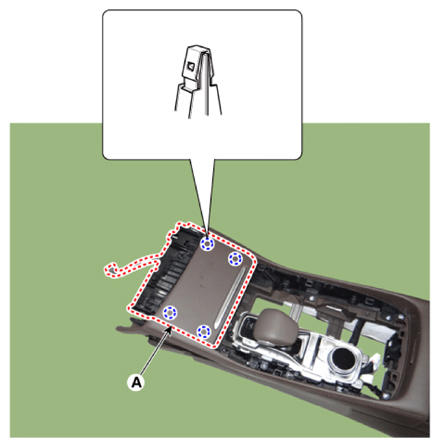

  2. Remove the console tray cover (A).
    G13128609Courtesy of KIA MOTORS AMERICA, INC.

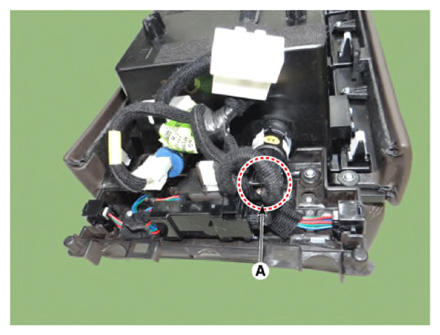

  3. Disconnect the USB charger connector (A).
    G13128610Courtesy of KIA MOTORS AMERICA, INC.

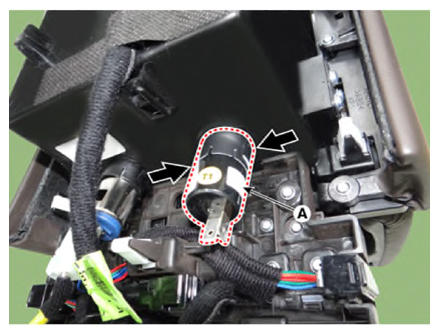

  4. Remove the USB charger (A) by pressing the hooks.
G13128611Courtesy of KIA MOTORS AMERICA, INC.
