Repair Procedures: Reassembly

  1. Wrap tape around the driveshaft spline (TJ) to prevent damaging the boot.

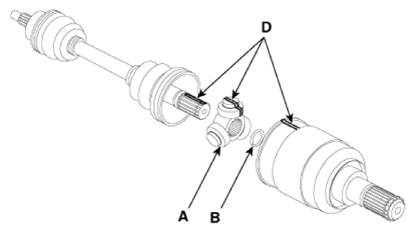

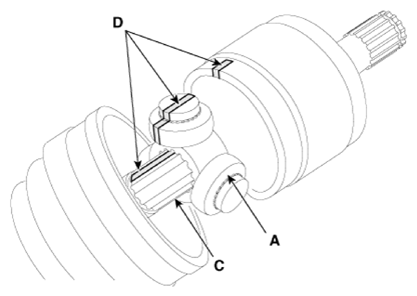

  2. Using the alignment marks (D) made during disassembly as a guide, install the spider assembly (A) and snap ring (B) on the driveshaft splines (C).
    G13144081Courtesy of KIA MOTORS AMERICA, INC.
    G13144082Courtesy of KIA MOTORS AMERICA, INC.
  3. Add specified grease to the joint boot as much as it was wiped away at inspection.
  4. Install both boot bands.

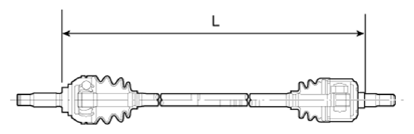

  5. To control the air in the TJ boot, keep the specified distance between the boot bands when they are tightened.
    Engine Distance (L) mm (in.)
    LH side RH side
    Lambda-II 3.3/3.8 GDI
    Tau 5.0 GDI
    G13144083Courtesy of KIA MOTORS AMERICA, INC.
  6. Using the SST (09459-3K000, 09459-39100), secure the TJ boot bands.

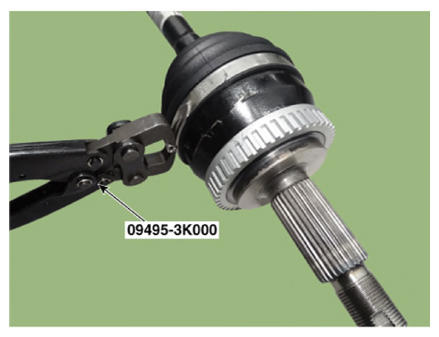

    [Ear type]

    G13144084Courtesy of KIA MOTORS AMERICA, INC.

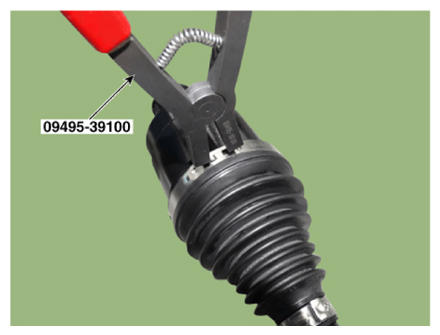

    [Hook type]

    G13144085Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: Do not reuse the boot band.
  7. Install the front drive shaft.

    (Refer to Front Driveshaft Assembly - "FRONT DRIVESHAFT ")

  8. Check the front alignment.

    (Refer to Suspension System - "FRONT ALIGNMENT ")
