Repair Procedures: Replacement

CAUTION: Put on gloves to prevent hand injuries.

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Take care not to bend or scratch the trim and panels.

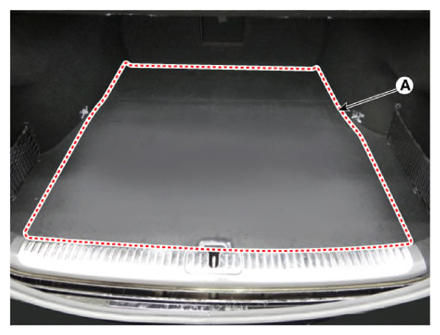

Remove the luggage covering (A).

Courtesy of KIA MOTORS AMERICA, INC.

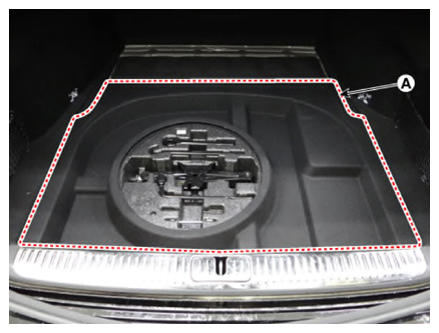

Remove the luggage under cover (A).

Courtesy of KIA MOTORS AMERICA, INC.

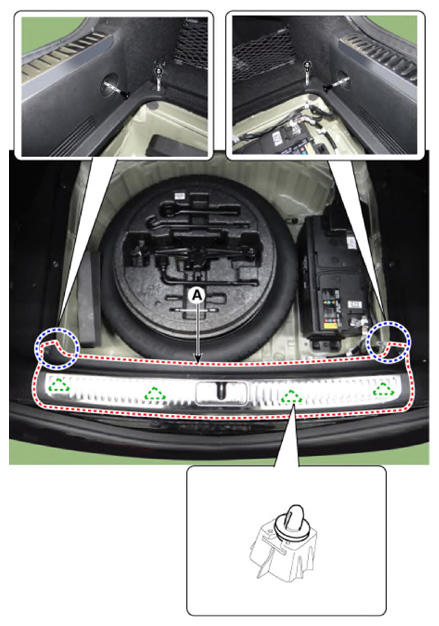

Loosen the mounting clips and bolts, remove the rear transverse trim (A).

Courtesy of KIA MOTORS AMERICA, INC.
To install, reverse the removal procedure.
Information

Replace any damaged clips (or pin-type retainers).
