Repair Procedures: Replacement

CAUTION: Put on gloves to prevent hand injuries.

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
Take care not to bend or scratch the trim and panels.

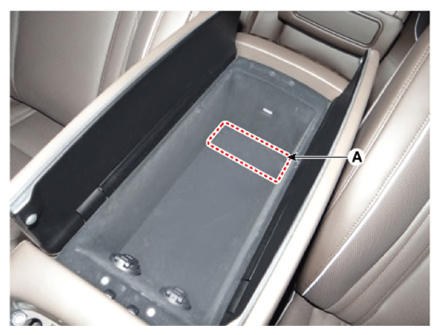

Remove the console armrest service hall (A).

Courtesy of KIA MOTORS AMERICA, INC.

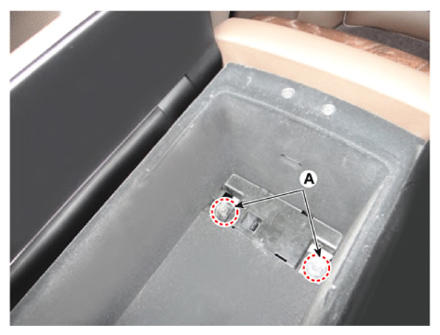

Loosen the console armrest mounting bolts (A).

Courtesy of KIA MOTORS AMERICA, INC.

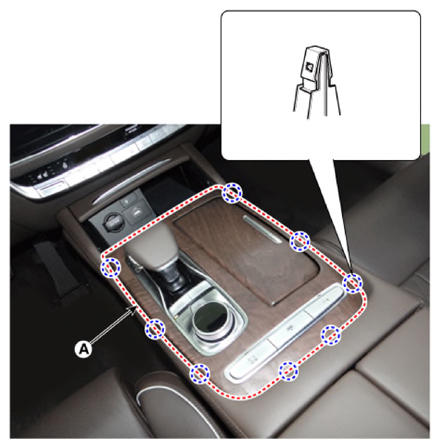

Using a screwdriver or remover, remove the console upper cover (A).

Courtesy of KIA MOTORS AMERICA, INC.

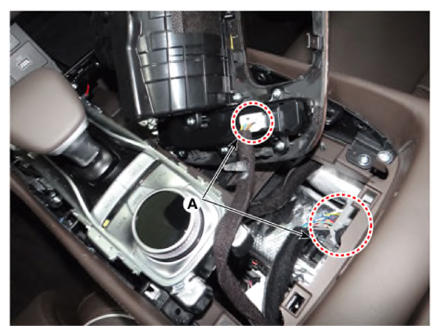

Disconnect the connectors (A).

Courtesy of KIA MOTORS AMERICA, INC.

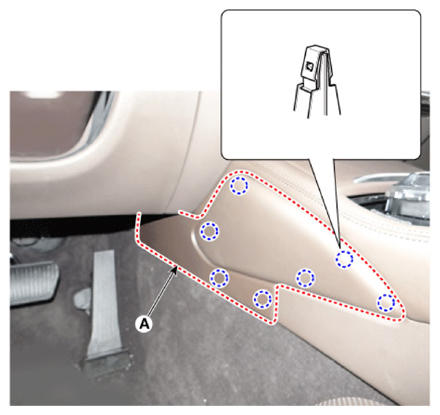

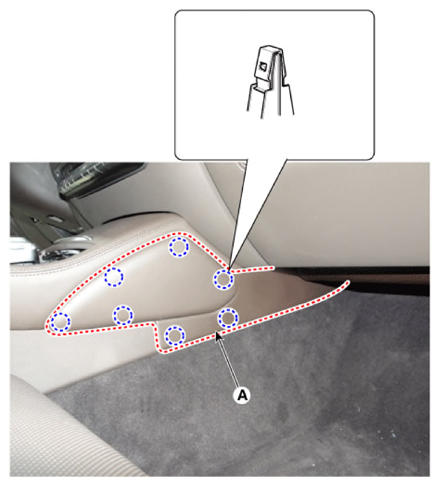

Using a screwdriver or remover, remove the console side cover (A).
[LH]

Courtesy of KIA MOTORS AMERICA, INC.

[RH]

Courtesy of KIA MOTORS AMERICA, INC.

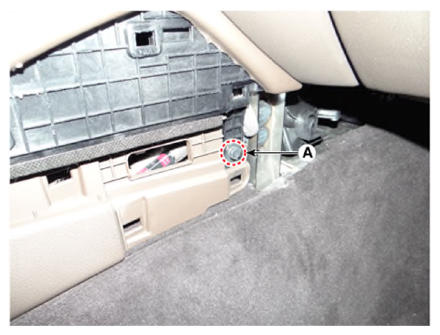

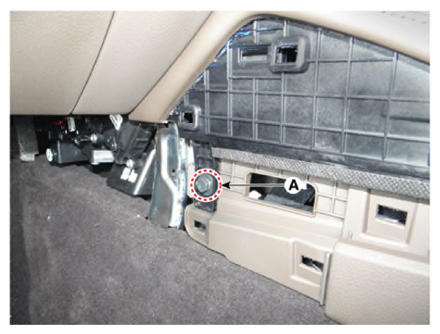

Loosen the console side mounting bolts (A).
[LH]

Courtesy of KIA MOTORS AMERICA, INC.

[RH]

Courtesy of KIA MOTORS AMERICA, INC.

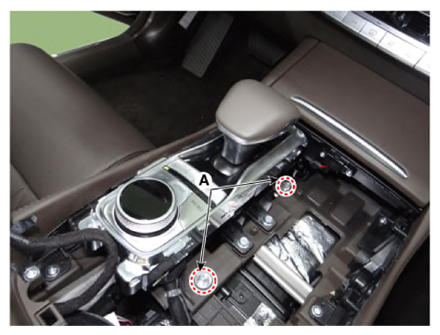

Loosen the floor console mounting bolts (A).

Courtesy of KIA MOTORS AMERICA, INC.

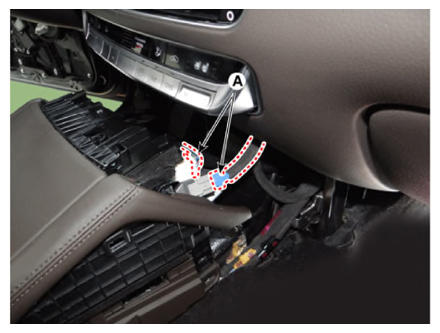

Disconnect the connectors (A).

Courtesy of KIA MOTORS AMERICA, INC.
