Repair Procedures: Disassembly

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Put on gloves to prevent hand injuries.

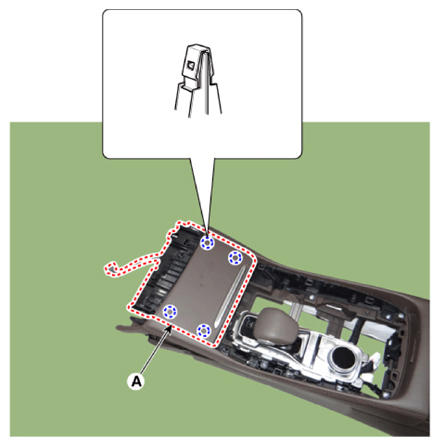

Remove the console tray cover (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the electronic shift lever.
G 3.3 GDI LAMBDA II (Refer to Automatic Transmission Control System - " E-SHIFTER ")
Remove the rear console cover.
(Refer to Floor Console - "REAR CONSOLE COVER ")
Remove the rear console armrest.
(Refer to Floor Console - "REAR CONSOLE ARMREST ")
