Repair Procedures: Replacement

CAUTION: Put on gloves to prevent hand injuries.

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Take care not to bend or scratch the trim and panels.

Remove the floor console assembly.
(Refer to Floor Console - "FLOOR CONSOLE ASSEMBLY ")

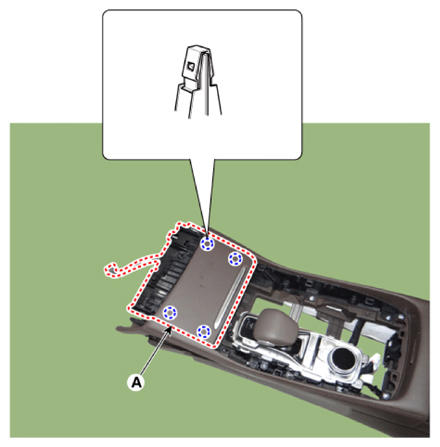

Remove the console tray cover (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the rear console cover.
(Refer to Floor Console - "REAR CONSOLE COVER ")

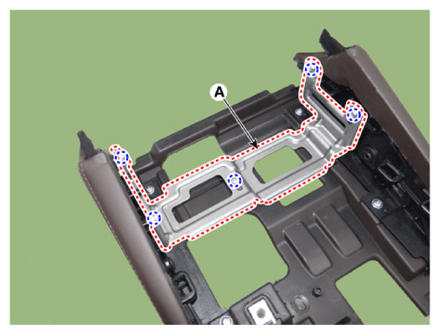

After loosening the mounting screw, remove the bracket (A).

Courtesy of KIA MOTORS AMERICA, INC.

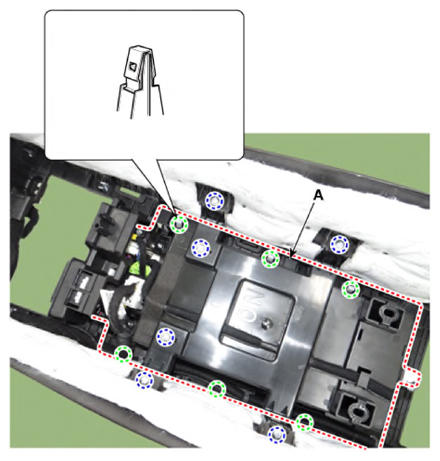

After loosening the mounting screw, remove the console upper garnish (A).

Courtesy of KIA MOTORS AMERICA, INC.

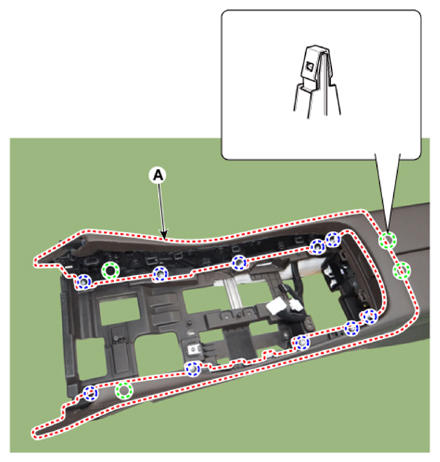

After loosening the mounting screw, remove the console armrest assembly (A).

Courtesy of KIA MOTORS AMERICA, INC.

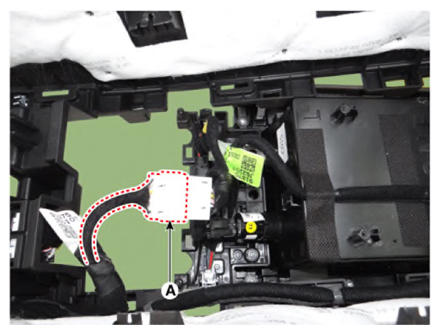

Disconnect the connector (A).

Courtesy of KIA MOTORS AMERICA, INC.
To install, reverse the removal procedure.
Information
- Replace any damaged clips (or pin-type retainers).
- Make sure the connector is connected properly.
