Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the steering wheel.

    (Refer to Steering System - "STEERING WHEEL ")

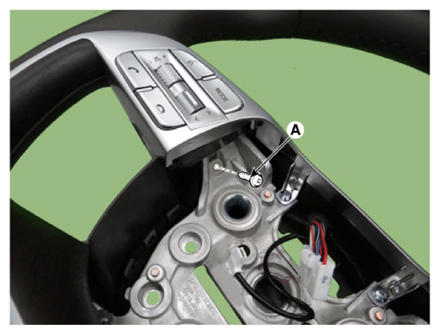

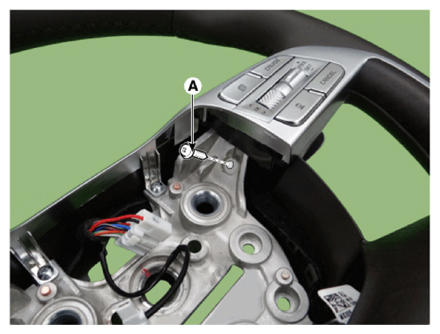

  3. Loosen the paddle shift switch mounting screws (A).
    G13128482Courtesy of KIA MOTORS AMERICA, INC.
    G13128483Courtesy of KIA MOTORS AMERICA, INC.

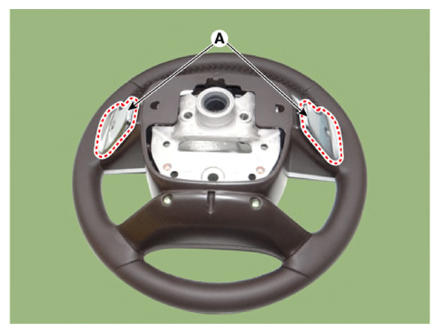

  4. Remove the paddle shift switch (A).
    G13128484Courtesy of KIA MOTORS AMERICA, INC.

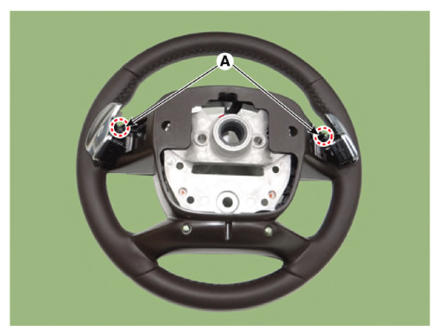

  5. Disconnect the paddle shift switch connector (A).
    G13128485Courtesy of KIA MOTORS AMERICA, INC.

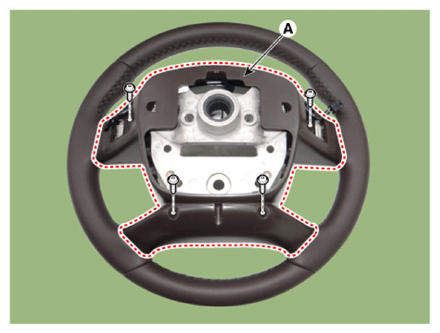

  6. Remove the steering wheel rear cover (A) after loosening the screws.
    G13128486Courtesy of KIA MOTORS AMERICA, INC.

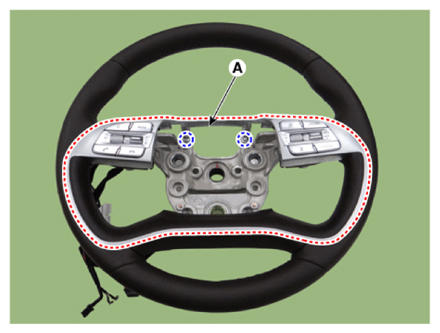

  7. Remove the steering wheel front cover (A) after loosening the screws.
    G13128487Courtesy of KIA MOTORS AMERICA, INC.

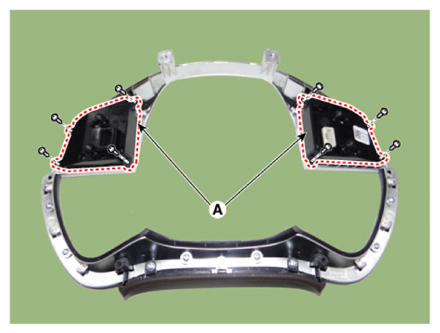

  8. Remove the steering wheel remote controller (A).
G13128488Courtesy of KIA MOTORS AMERICA, INC.
