Front Multimedia Jack
NOTE:
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- Disconnect the negative (-) battery terminal.
- Remove the floor console assembly.
(Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

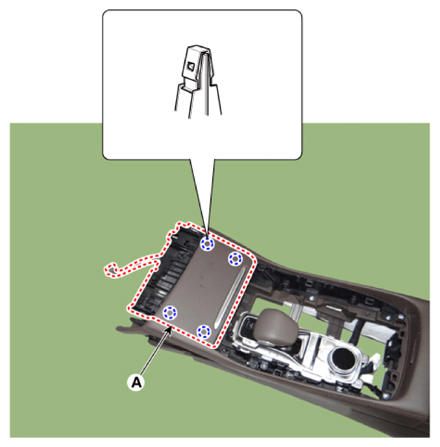

- Remove the console tray cover (A).

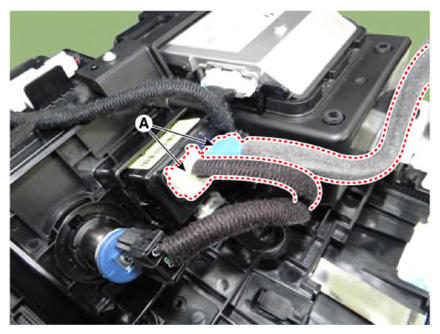

- Disconnect the connector (A) from the multimedia jack.

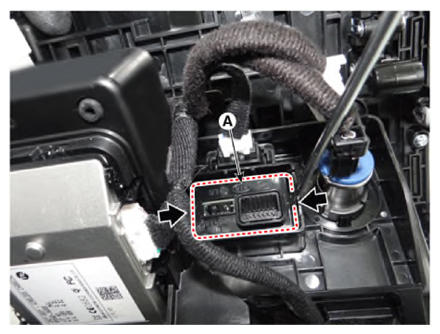

- Remove the multimedia jack (A) after pressing the fixed hooks.
