Repair Procedures: Inspection

  1. Disconnect the negative (-) battery terminal.
  2. Remove the overhead console lamp.

    (Refer to Lighting System - "OVERHEAD CONSOLE LAMP ")

  3. Check the continuity of between terminals.

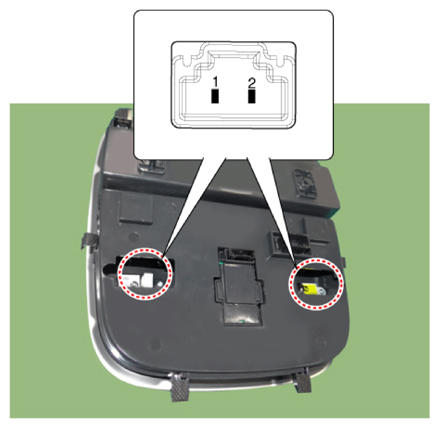

    G13128499Courtesy of KIA MOTORS AMERICA, INC.

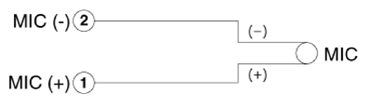

    G13128500Courtesy of KIA MOTORS AMERICA, INC.
